1T1 EB‑BUS Cable, Controller‑to‑Display Harness for Bafang e‑Bike, Waterproof Male‑Female Connector, Compatible with Full Bafang Mid‑Drive Motors & Hub Motor Conversion Kits

1T1 EB‑BUS Assembly Harness for Bafang eBike – Controller Port to Display Cable

This high‑quality 1T1 EB‑BUS complete assembly harness connects the e‑bike controller port directly to the display unit. Built with original‑standard pinout and Bafang EB‑BUS communication protocol, it delivers reliable, stable signal transmission between controller and display. It provides enhanced installation flexibility for special frame geometries, custom motor layouts and rebuild projects for both Bafang mid‑drive and compatible hub conversion e‑bike systems.

This cable is specifically designed for Bafang e‑bike displays and for wiring applications that require a direct controller‑to‑display connection. It supports improved flexibility and installation options for various motor setups and frame configurations, including custom builds, recumbent bikes, trikes and retrofit projects.

Compatibility

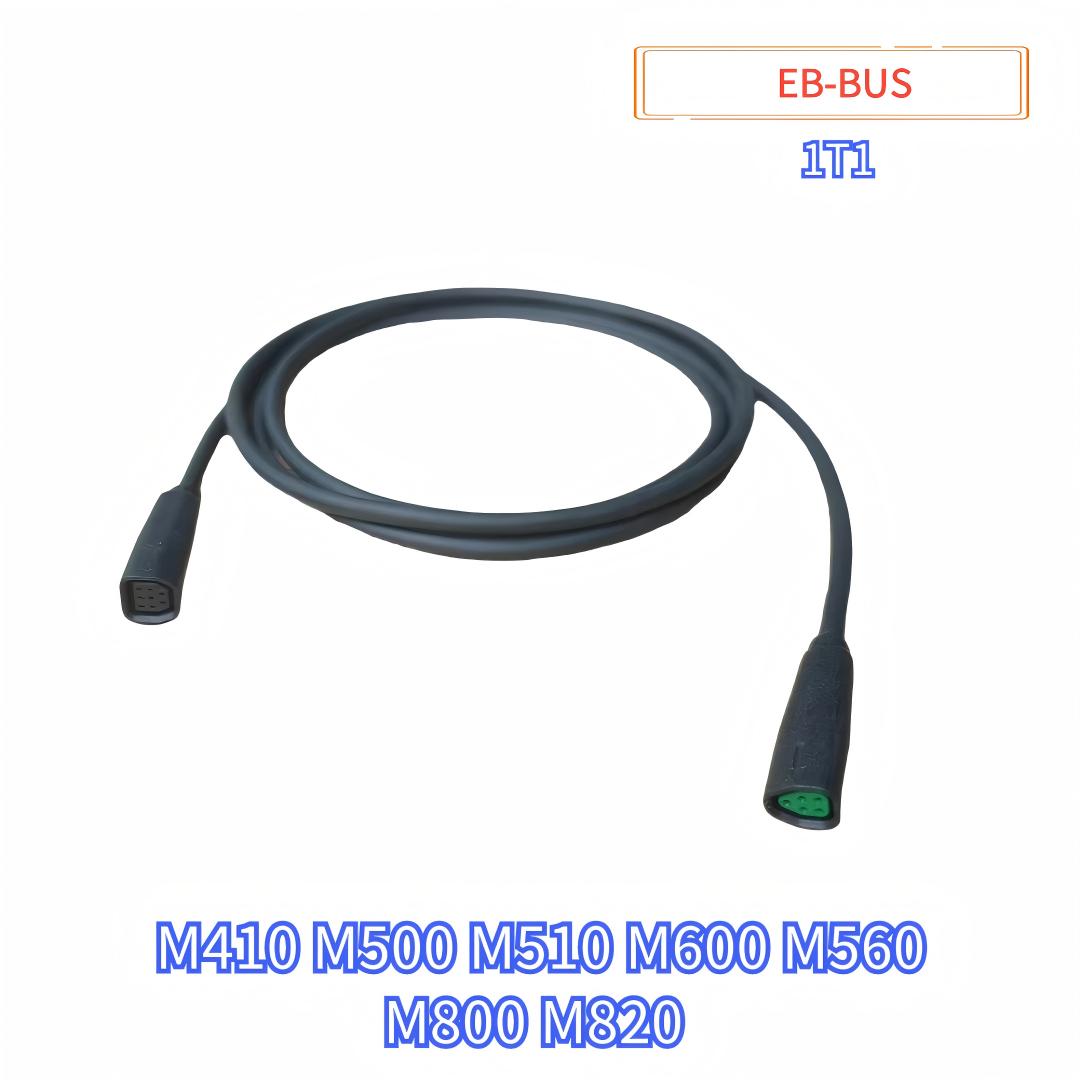

✅ Full Bafang Mid‑Drive Motors: M200, M210, M215, M300, M315, M400, M410, M420, M430, M500, M510, M560, M600, M615, M620, M800, M820

✅ Bafang Hub Motor Conversion Kits: compatible with hub motor conversion systems that adopt Bafang‑standard pinout and EB‑BUS (UART/CAN) communication protocol

✅ Display & Controller Connection: suitable for original and aftermarket Bafang‑compatible displays and controllers where the 1T1 controller‑to‑display harness is required

Precise Parameters

Package Includes

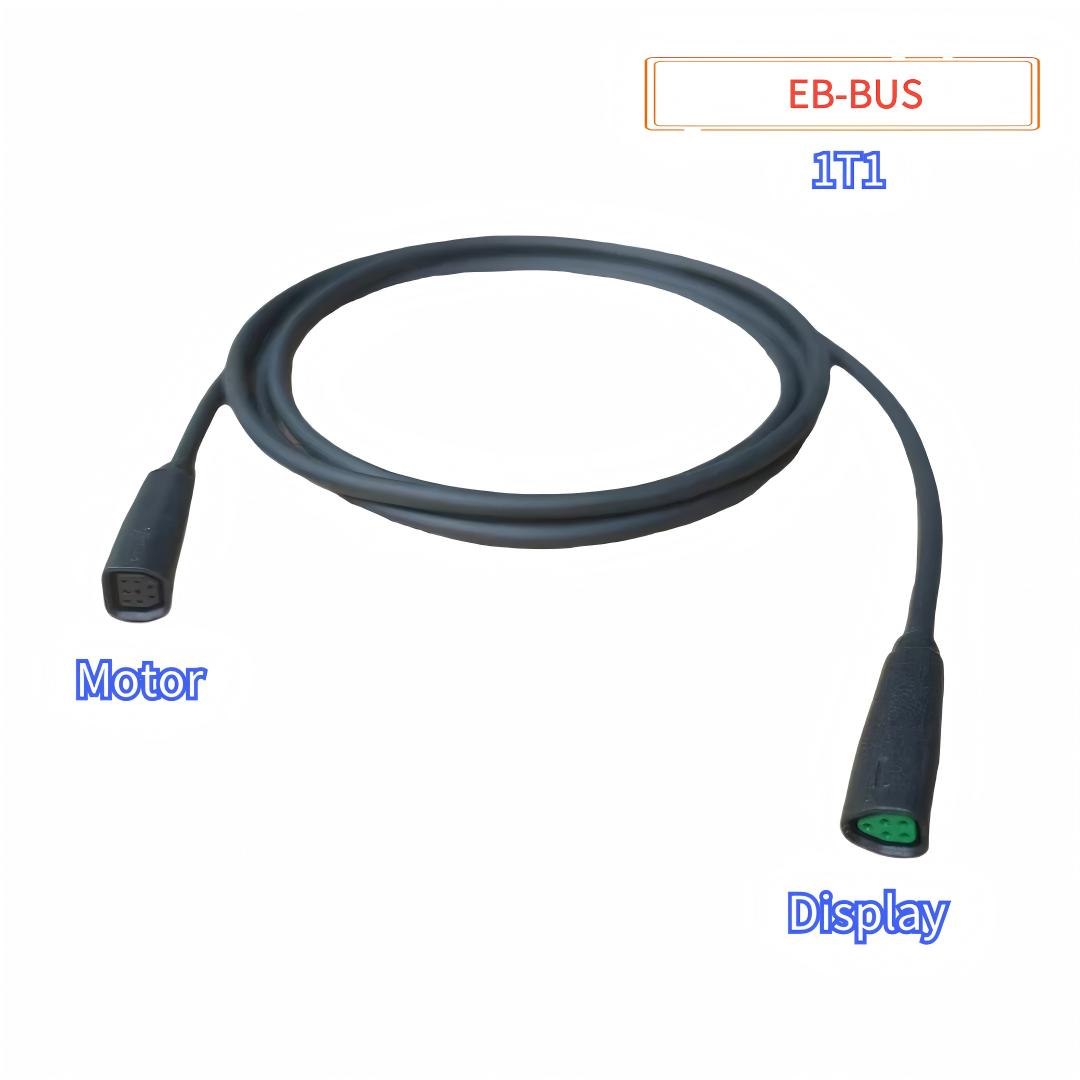

1 × 1T1 EB‑BUS Complete Assembly Harness – Controller‑to‑Display Waterproof Cable

Key Features

✅ 1T1 EB‑BUS Controller‑to‑Display Assembly Harness: purpose‑built cable assembly for direct connection between controller port and display unit, ready to use out of the box.

✅ Exact Factory Pinout & EB‑BUS Protocol Match: strictly follows original Bafang wiring sequence and EB‑BUS communication protocol for plug‑and‑play installation and stable data communication.

✅ Custom‑Length Option: supports customized cable length to resolve wiring shortage issues in special frame geometry, custom motor layouts and e‑bike rebuild projects.

✅ Waterproof & Durable Connector: high‑grade waterproof male‑female connector helps prevent moisture, dust and mud intrusion for all‑weather riding.

✅ Flexible Wear‑Resistant Cable Sheath: flexible outer jacket resists repeated bending, frame friction and long‑term vibration.

✅ Dual‑System Compatibility: works with full Bafang M‑series mid‑drive motors and with Bafang‑protocol hub motor conversion systems that use matching pinout and EB‑BUS communication.

Specifications

• Product Name: 1T1 EB‑BUS Controller‑to‑Display Assembly Harness
• Cable Function: Connect controller port to e‑bike display

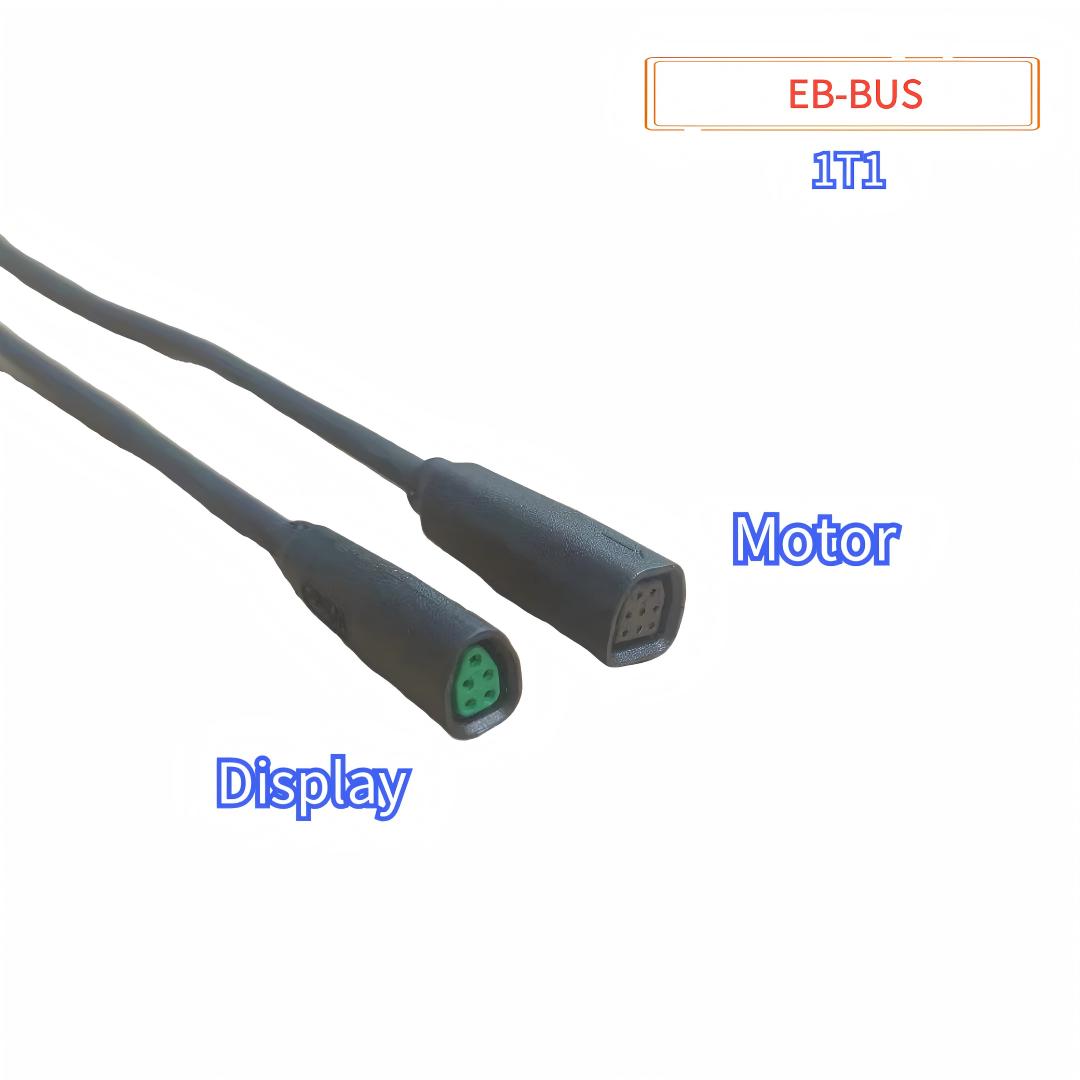

• Connector: Waterproof male‑female plug
• Supported Protocol: Bafang EB‑BUS (UART / CAN‑bus)
• Sheath Material: Flexible wear‑resistant PVC
• Waterproof Rating: IP65 (connector part)
• Compatible Systems: Full Bafang M‑series mid‑drive motors; hub motor conversion kits with Bafang‑compatible pinout & EB‑BUS communication protocol
• Color: As shown in picture
• Package: 1 × 1T1 EB‑BUS complete assembly harness

Important Notes

Please confirm your e‑bike system EB‑BUS communication protocol (UART or CAN‑bus) and connector pin definition before purchasing to avoid incompatibility.

Only the listed 1T1 EB‑BUS assembly harness is included; display, controller, motor and other e‑bike components shown in reference images are NOT included.

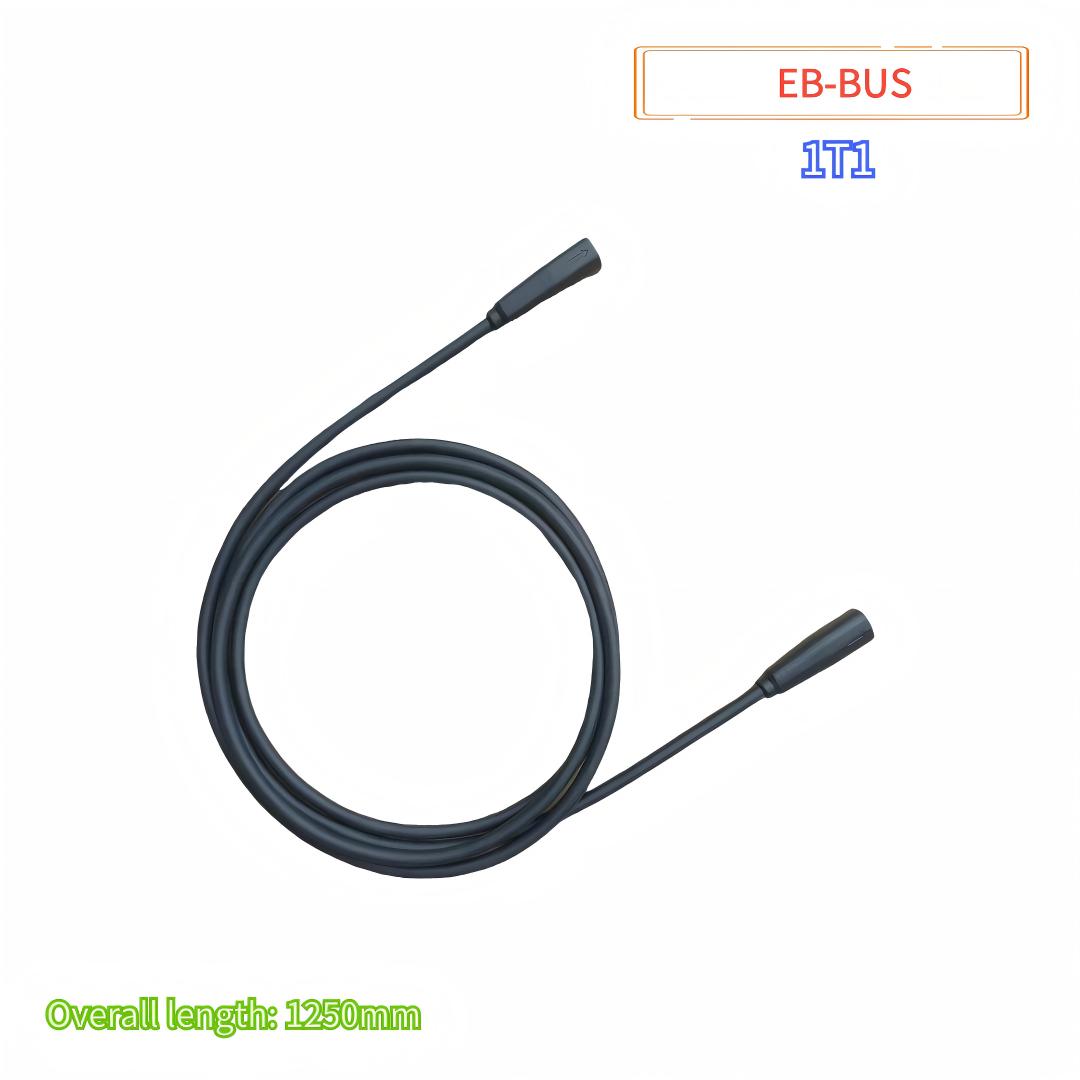

Cable length tolerance: ±5cm for custom‑length orders.

Not suitable for non‑Bafang EB‑BUS protocol systems with different pin assignment.

Ideal for e‑bike repair shops, DIY rebuilders and custom conversion projects. This 1T1 EB‑BUS harness provides a reliable controller‑to‑display connection solution for custom frame builds, mid‑drive installations and Bafang‑protocol hub motor conversion systems.
