TSDZ2 / TSDZ2B Built-in Bare Controller for Tongsheng Mid-Drive E-bike Motor

This is the original built-in bare controller specially manufactured for Tongsheng TSDZ2 and TSDZ2B central mid drive motors. It serves as a direct replacement control board to fix faulty or broken TSDZ2 mid motors, restoring your e-bike power system to factory working status.

This listing is for the 8PIN version without throttle function, available in 250W/ 350W /500W power rating and 36V /48V voltage options.

Compatibility

✅ Tongsheng TSDZ2 Mid Drive Motor

✅ Tongsheng TSDZ2B Mid Drive Motor

✅ Supports PAS, Hall Sensor, Phase Line, Display and Speed Sensor signal connection

Specifications Table

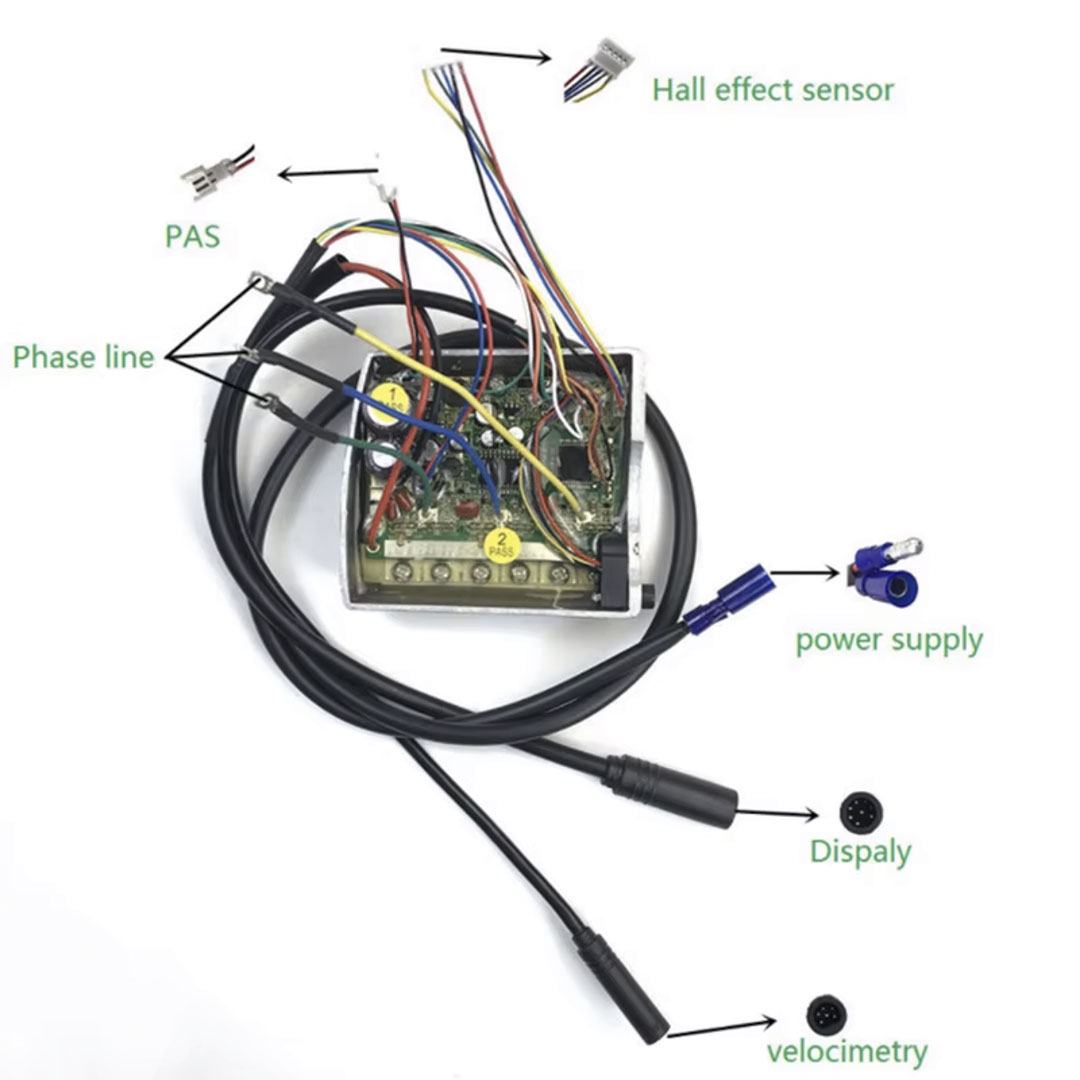

Wiring Port Definition

• Hall effect sensor: Motor hall signal connector
• PAS: Pedal Assist Sensor connector
• Phase line: 3-phase motor power wires
• Power supply: Battery power input port
• Display: E-bike screen connector
• Velocimetry: Speed sensor connector

Key Features

✅ Original replacement controller, stable output and reliable performance, comes with after-sale warranty.

✅ Direct drop-in replacement for damaged TSDZ2 / TSDZ2B mid motor control board.

✅ 8PIN model without throttle function, supports PAS pedal assist riding mode.

✅ Multiple voltage & power choices: 36V/48V, 350W/500W for different ebike build.

✅ Pre-wired complete harness with clearly defined ports for simple installation.

Important Notices

1. This is 8PIN version without throttle function, please double check your original controller pin definition before ordering.
2. Only bare controller included. Motor, battery, display and other accessories shown on wiring diagram are NOT included.
3. Color difference may exist due to lighting and screen display. Manual measurement tolerance: ±1~3cm.
4. Professional ebike technician installation is recommended. Wrong wiring may burn the controller.
