B02NU B02NC E‑Bike Color IPS Display Meter, UART CAN Dual‑Protocol Screen for Bafang BBS, Tongsheng TSDZ, Hub Conversion Kits, Bluetooth BLE with BIKEGO APP Navigation, IP67 Waterproof

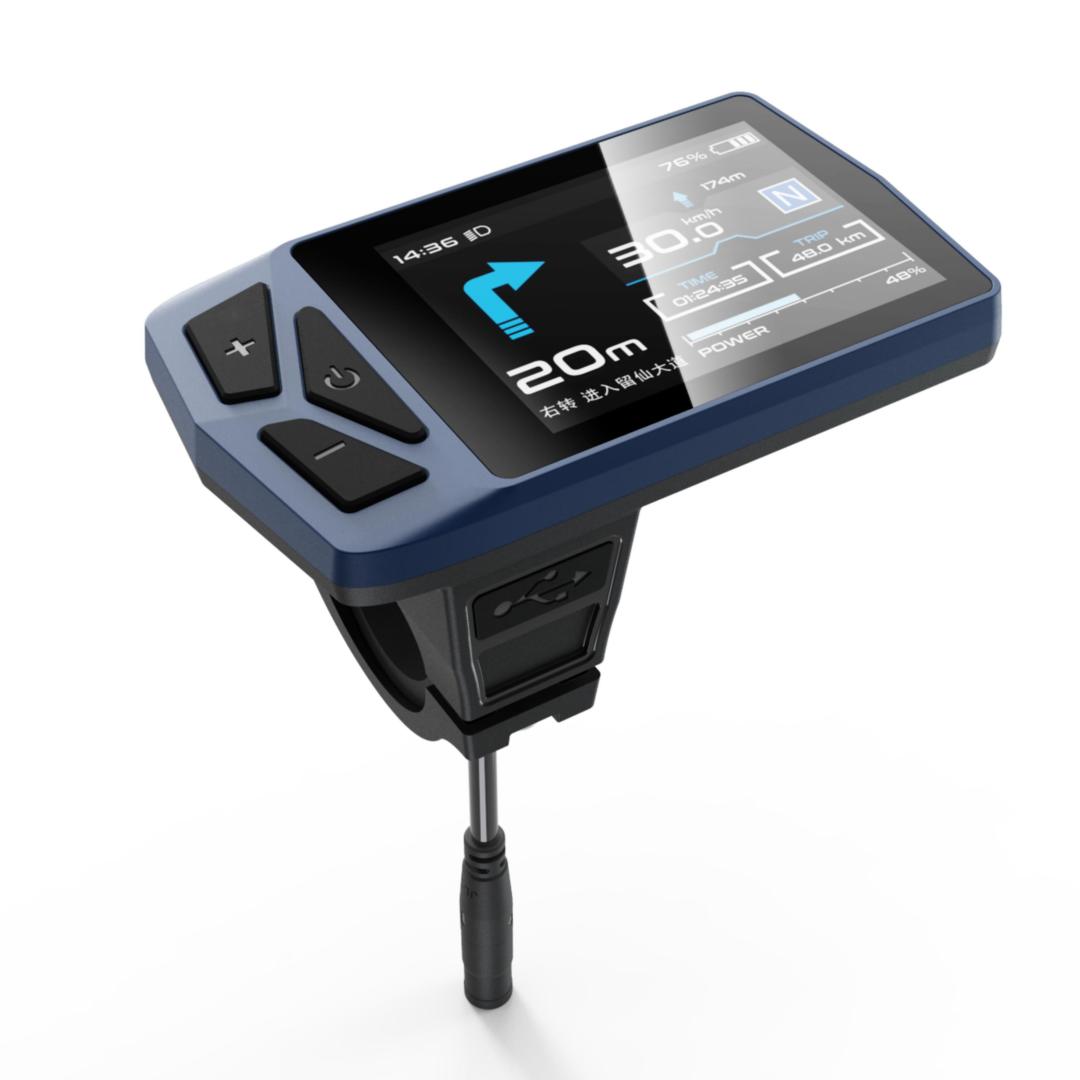

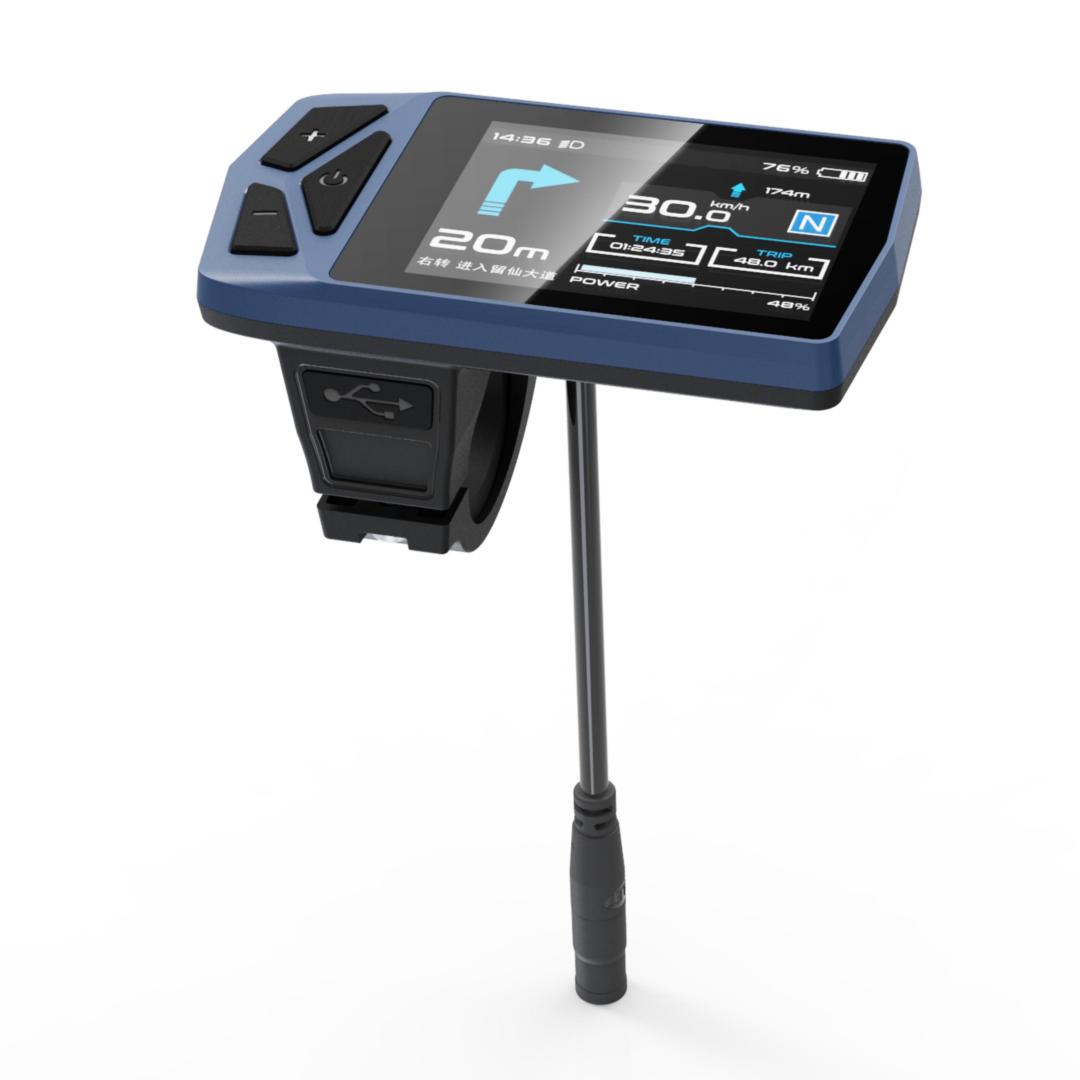

B02NU/C 2.4‑Inch IPS Color E‑Bike Display Meter

The B02NU/C is a multi‑protocol smart color dashboard built for e‑bike retrofit and replacement projects. Hardware supports both UART and CAN‑bus. It works with Bafang BBS mid‑drive conversion systems, Tongsheng TSDZ series, various hub motor conversion kits, supporting Bafang, Ananda, Tongsheng and 5S‑Battery No.2 communication protocols. Equipped with BLE 4.0+Bluetooth, BIKEGO APP navigation, Type‑C port, multi‑theme UI, password anti‑theft lock and fault‑code diagnosis. IP67 waterproof for all‑weather outdoor riding.

Compatibility

✅ Works with Bafang BBS series mid‑drive conversion systems

✅ Compatible with Tongsheng TSDZ mid‑drive retrofit series

✅ Fits various e‑bike hub motor conversion kits

✅ Supported communication protocols: Bafang, Ananda, Tongsheng, 5S‑Battery No.2

✅ Hardware dual bus support: UART / CAN‑bus

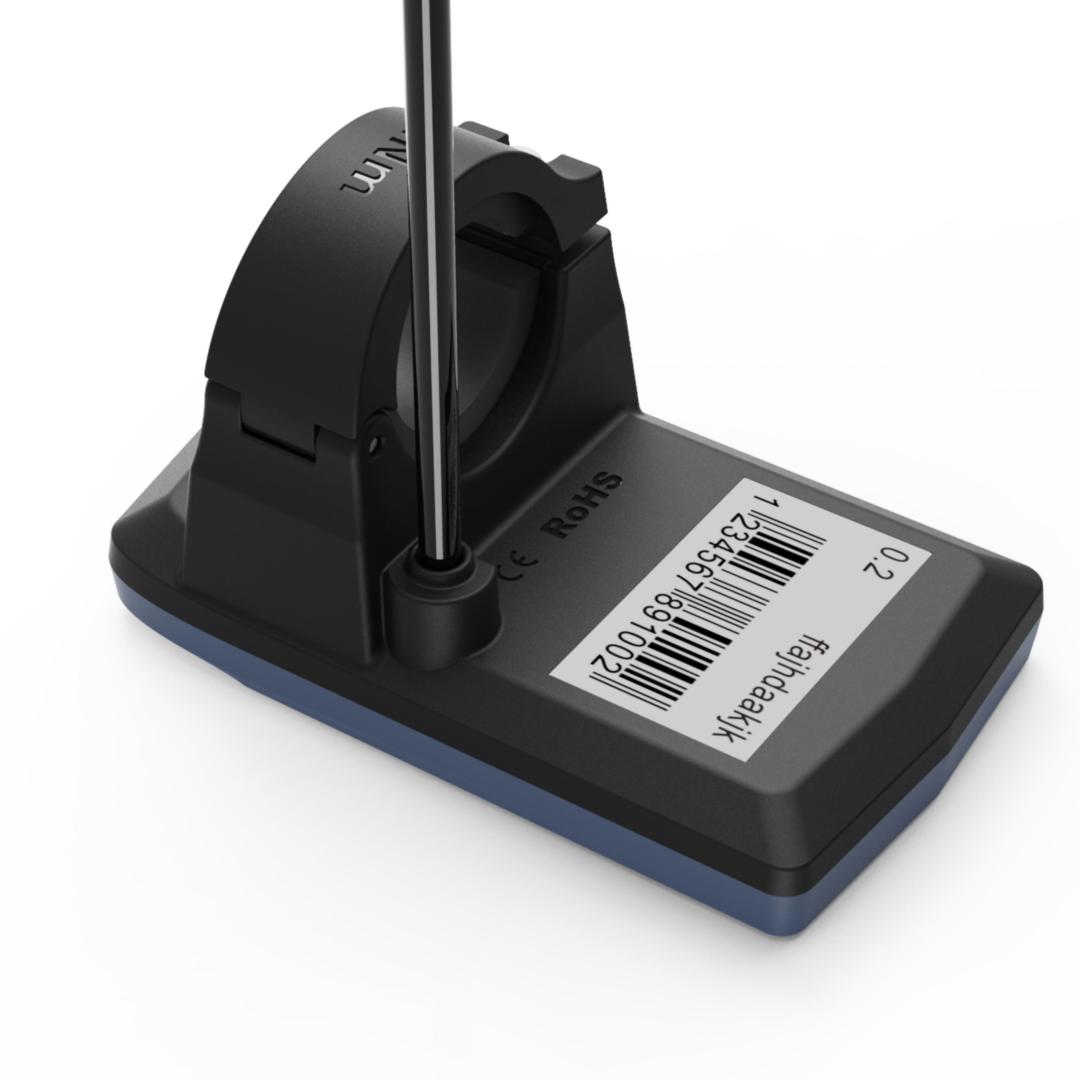

✅ Handlebar fitment: 22mm / 27.5mm diameter handlebars

Precise Parameters

Package Includes

1 × B02NU/C E‑bike Display Meter (with 20cm M5 waterproof cable)

Only the above package content, other products are not included.

Key Features

✅ Dual‑Bus Hardware UART / CAN: Hardware level support for UART and CAN‑bus, multi‑protocol compatible with Bafang BBS, TSDZ mid‑drive, hub conversion kits; supports Bafang, Ananda, Tongsheng, 5S‑Battery No.2 system protocols for most aftermarket e‑bike retrofit builds.

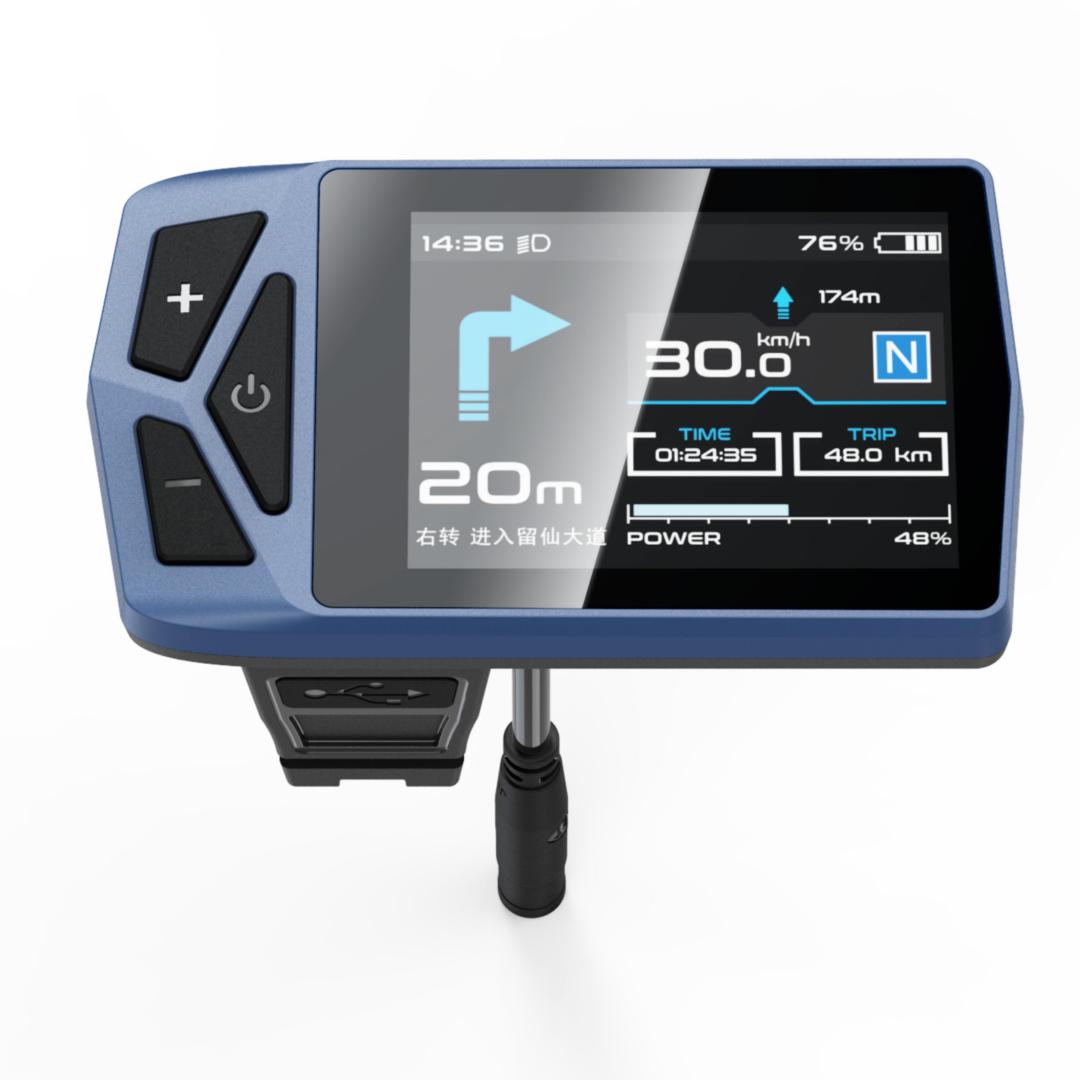

✅ 2.4‑Inch IPS Color Screen: 320*240 high‑definition IPS full‑view display, clear readability under bright sunlight; 4 optional UI visual themes for personalized interface.

✅ Bluetooth BLE & BIKEGO APP Navigation: Connect to BIKEGO mobile APP via Bluetooth. Supports real‑time turn‑by‑turn navigation on‑screen (live navigation service requires subscription). Synchronizes phone time to display, records riding data. Supports Bluetooth unlock anti‑theft password function.

✅ Rich Practical E‑Bike Functions: Shows real‑time speed, PAS gear, battery level, TRIP / AVG / ODO mileage, power wattage. Built‑in fault‑code diagnostic, records up to 6 history error codes for quick troubleshooting. Supports headlight control, walk‑assist 6km/h boost mode, cruise function, wheel‑size setup, speed‑limit adjustment.

✅ Multi‑Language & Anti‑Theft Password Lock: 8 selectable system languages; configurable power‑on password and Bluetooth unlock function to prevent unauthorized use. Adjustable backlight brightness, auto‑shutdown timer (1‑10min / OFF), metric‑imperial unit switch.

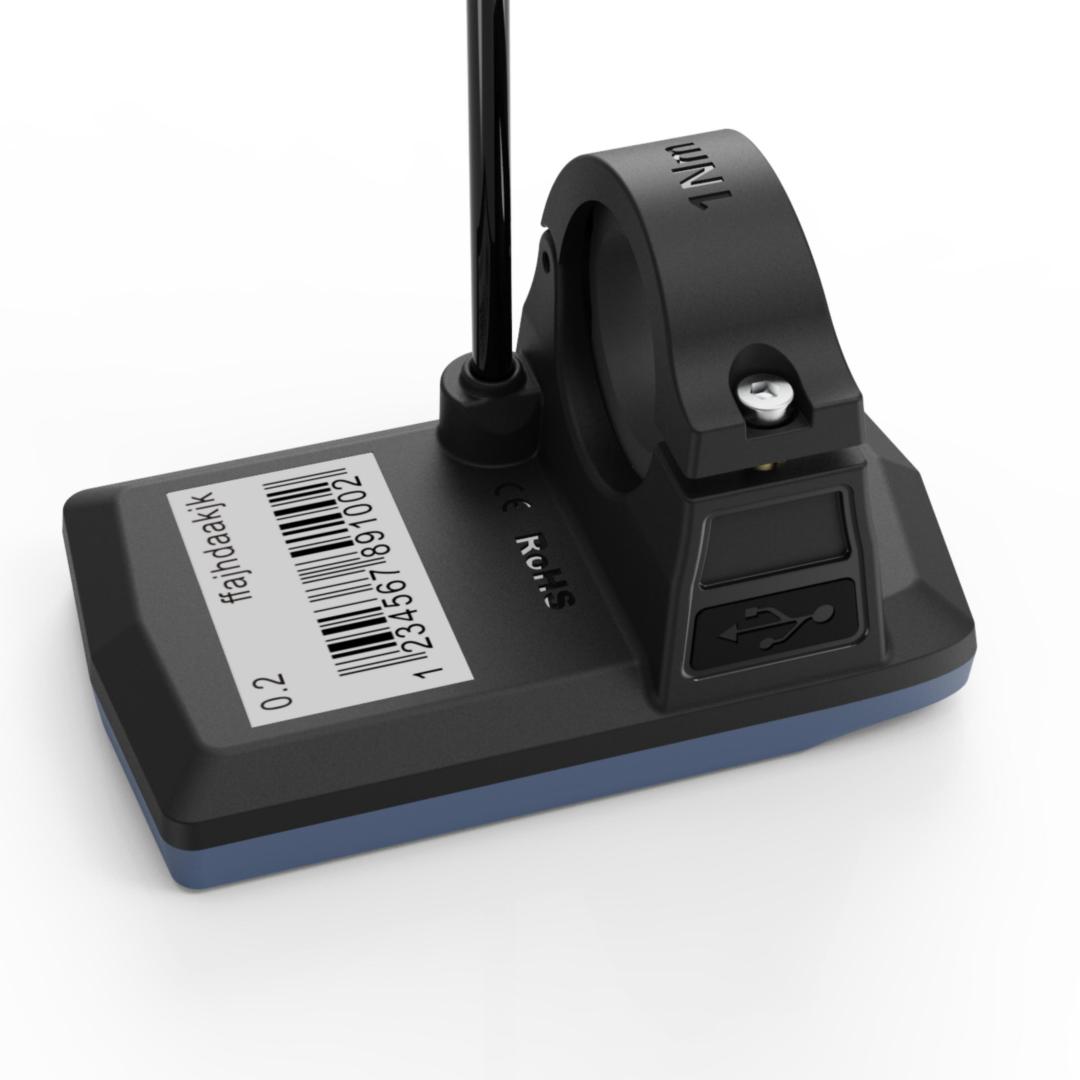

✅ IP67 Waterproof & Built‑in Type‑C Port: IP67 waterproof rating for rainy, muddy all‑weather riding. Integrated Type‑C interface; low sleep leakage current below 1uA under power‑off state.

✅ Easy Installation & Operation: Fits 22mm / 27.5mm handlebars; 3‑button simple operation (Power / Plus / Minus). Plug‑and‑play for e‑bike repair shops and DIY conversion enthusiasts.

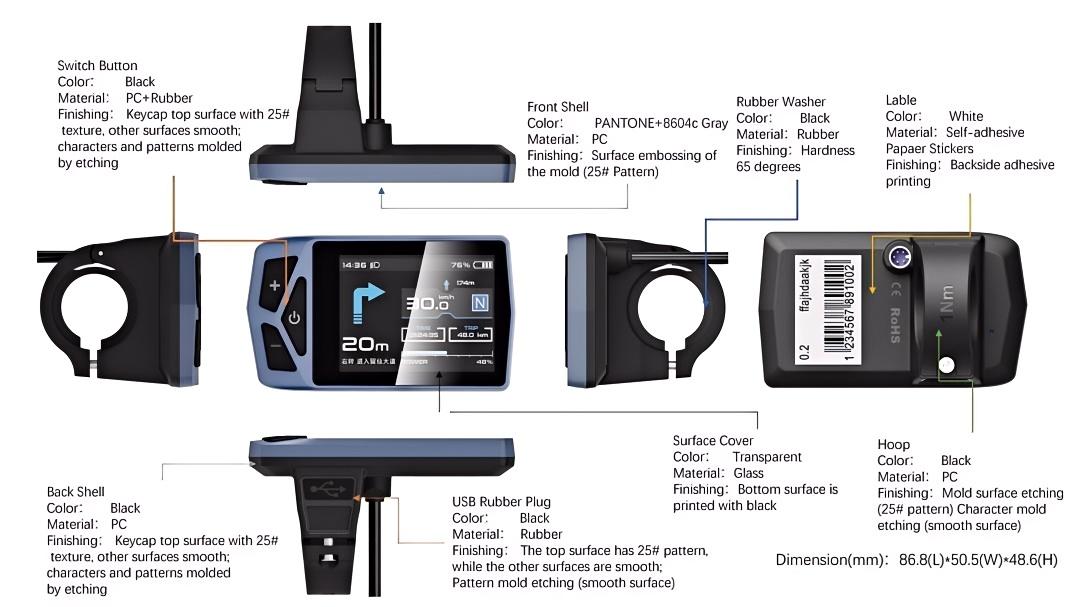

Specifications

• Product Name: B02NU E‑bike Smart IPS Color Display
• Model: B02NU
• Screen:2.4″ IPS RGB 320*240
• Hardware Protocol: UART / CAN dual‑bus
• Supported System Protocols: Bafang, Ananda, Tongsheng,5S‑Battery No.2
• Waterproof: IP67
• Voltage Range:12V‑60V
• Bluetooth: BLE4.0+
• Extra Port: Type‑C
• Handlebar Fit:22mm /27.5mm
• Weight:67g
• Language:8 multi‑language options
• Package:1 × B02NU display meter with M5 waterproof 20cm cable

Important Notes

Do NOT hot‑plug the display under power; hot‑plugging may damage electronic accessories. Real‑time live navigation function requires paid service via BIKEGO APP. Please confirm your controller’s communication protocol and connector pin definition before purchase to avoid incompatibility. Minor color difference may occur due to screen and lighting variations. Motor, controller, battery and other e‑bike components shown on reference images are NOT included. Product firmware may be upgraded, on‑screen UI may slightly differ from manual without affecting core functions.

Ideal spare replacement for e‑bike repair stores, DIY retrofit enthusiasts and ebike wholesale distributors. Perfect multi‑protocol color dashboard for BBS, TSDZ and hub‑motor conversion e‑bike projects.
