Bafang M620 G510 Mid Drive Ebike Motor Kit 48V 52V 750W 1000W, Max Torque 160N.m Complete Conversion Kit for MTB & Cargo Bike

Bafang M620 G510 Mid Drive Ebike Motor Kit

The Bafang M620 G510 mid-drive conversion kit is a heavy-duty mid-crank motor solution built for mountain bikes and cargo electric bicycles. It delivers impressive power output up to 1000W with a peak torque of 160N.m, providing outstanding climbing ability and stable power output under heavy loads. This mid motor supports both 48V and 52V battery systems, with rated power options of 750W and 1000W. Equipped with integrated speed and torque dual sensors, it intelligently adjusts assist power according to your pedaling force and cadence, bringing smooth and responsive riding experience.

Compatibility

✅ Rated Voltage: DC 48V / 52V

✅ Rated Power: 750W / 1000W Optional

✅ Shaft Standard: ISIS

✅ Application: Mountain Bike, Cargo E-bike

✅ Wheel Diameter: Optional

Core Parameters

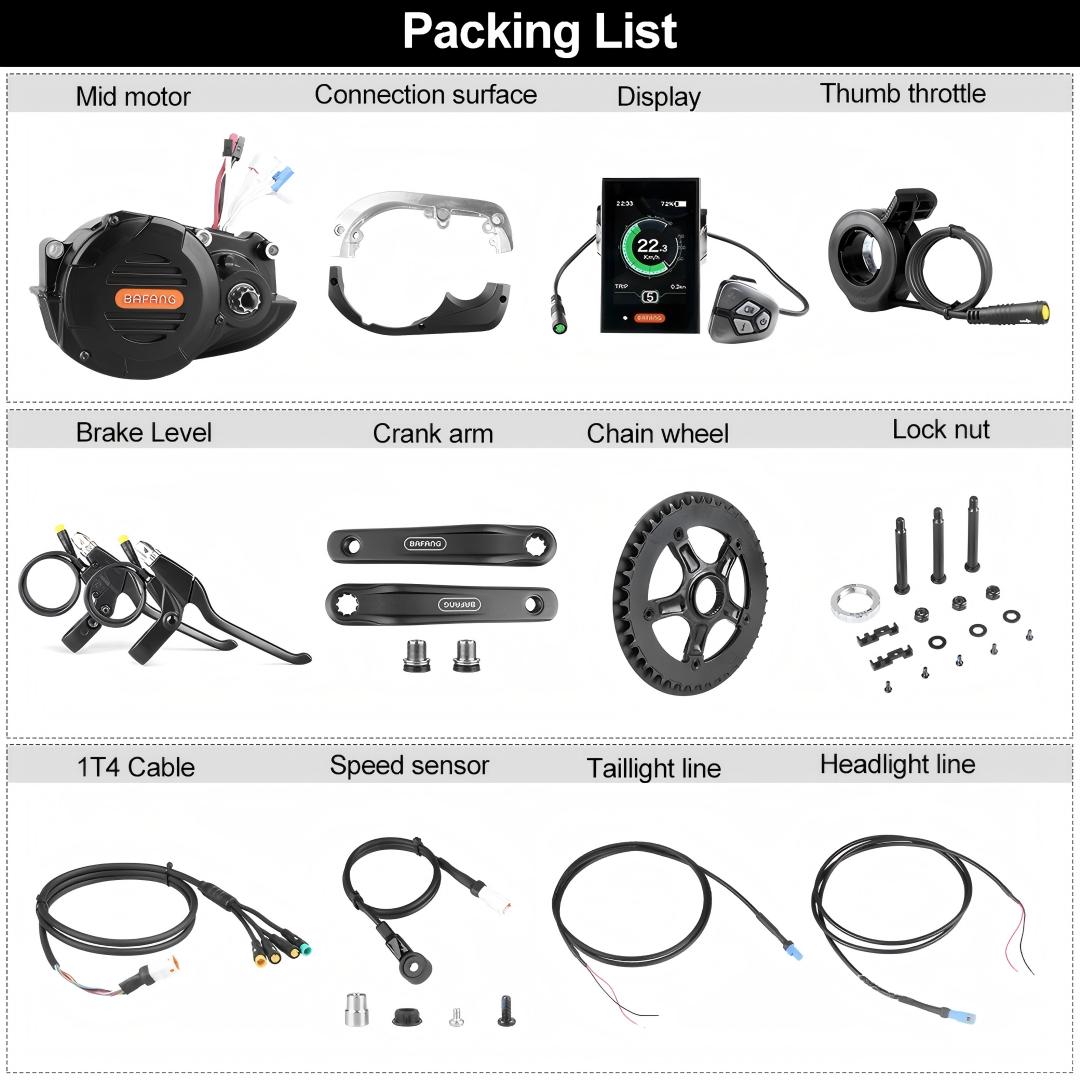

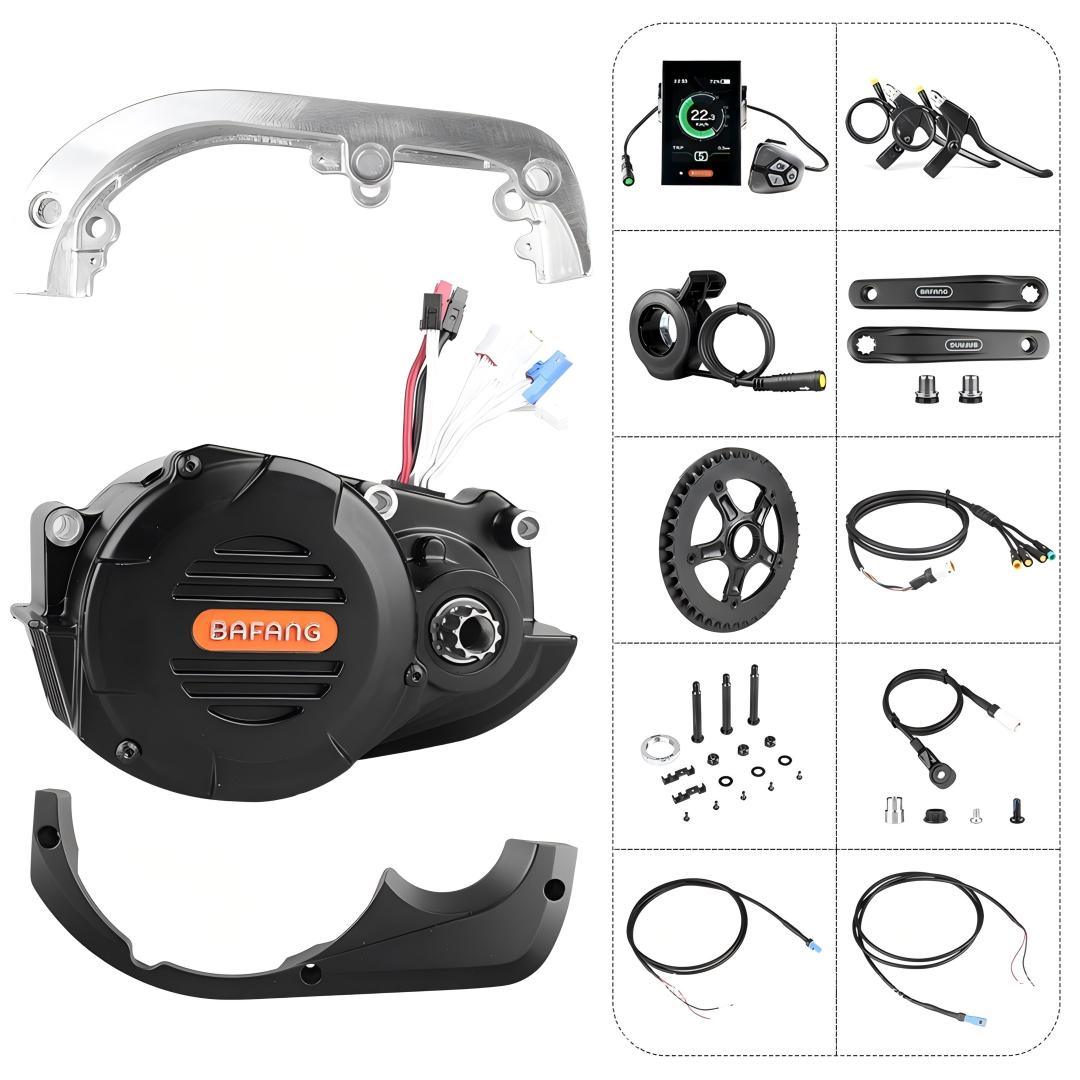

Package Includes

1 × Bafang M620 G510 Mid Drive Motor

1 × Motor Connection Surface / Protective Cover Set

1 × Display 1 × Thumb Throttle 1 × E-brake Lever

1 pair × Crank Arms

1 × Chain Wheel

1 set × Lock Nuts & Mounting Screws

1 × 1T4 Main Cable

1 × Speed Sensor

1 × Taillight Cable

1 × Headlight Cable All installation fasteners and accessories

Key Features

✅ Strong Power & Huge Torque: Up to 1000W rated power and 160N.m peak torque. Perfect for steep hill climbing and heavy load cargo transportation.

✅ Integrated Speed & Torque Sensor: Dual sensor design precisely detects pedaling input. Intelligent assist control for natural riding feel.

✅ Gear Drive System: High efficiency gear drive, ≥80% efficiency, low noise <55dB. Reliable long-term operation.

✅ IP65 Waterproof Rating: Dustproof and splash-proof, adapts to rainy days and rough outdoor riding conditions.

✅ 48V /52V Dual Voltage Support: Compatible with 48V or 52V battery packs, flexible for different range and power demands.

✅ 6V Light Output: Built-in 6V power output for headlight and taillight, convenient for night riding.

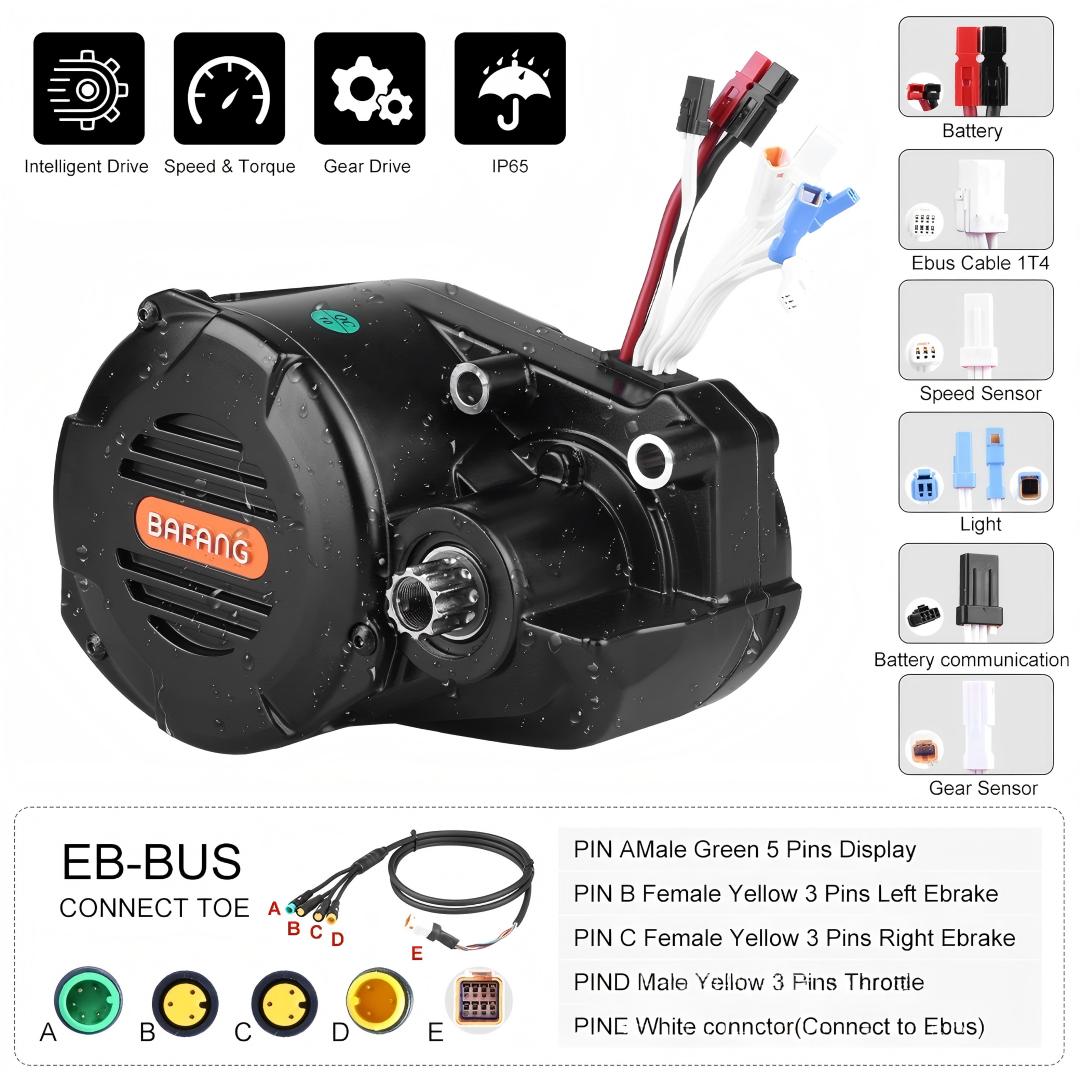

✅ EB-BUS Communication: Standard EB-BUS 1T4 cable, simple wiring, stable communication between motor, display and sensors.

✅ Complete Kit Ready to Install: Full set of accessories included, no extra parts needed for DIY MTB or cargo ebike conversion.

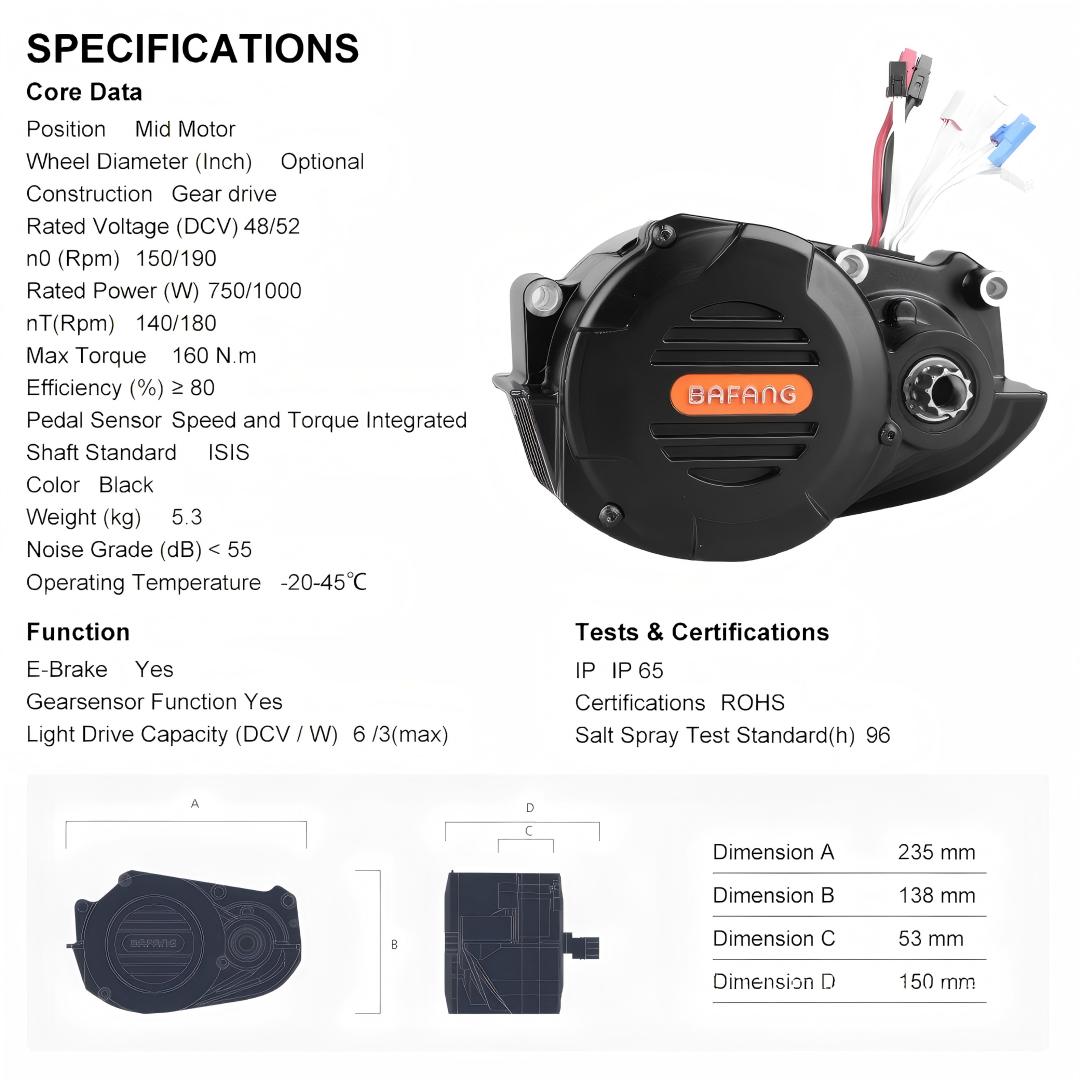

Specifications

• Motor Model: Bafang M620 (G510)
• Motor Type: Mid Crank Mid Drive Gear Motor
• Voltage: 48V / 52V DC
• Power Option: 750W / 1000W
• Max Torque: 160 N.m
• Sensor: Integrated speed & torque sensor
• IP Grade: IP65
• Weight: 5.3kg
• Suitable Bike: Mountain bike, cargo ebike
• Package: Full conversion kit as listed above

Important Notes

• Please confirm required voltage (48V /52V) and power rating (750W or 1000W) before order.
• Check your bicycle frame mounting interface to confirm compatibility with Bafang M620.

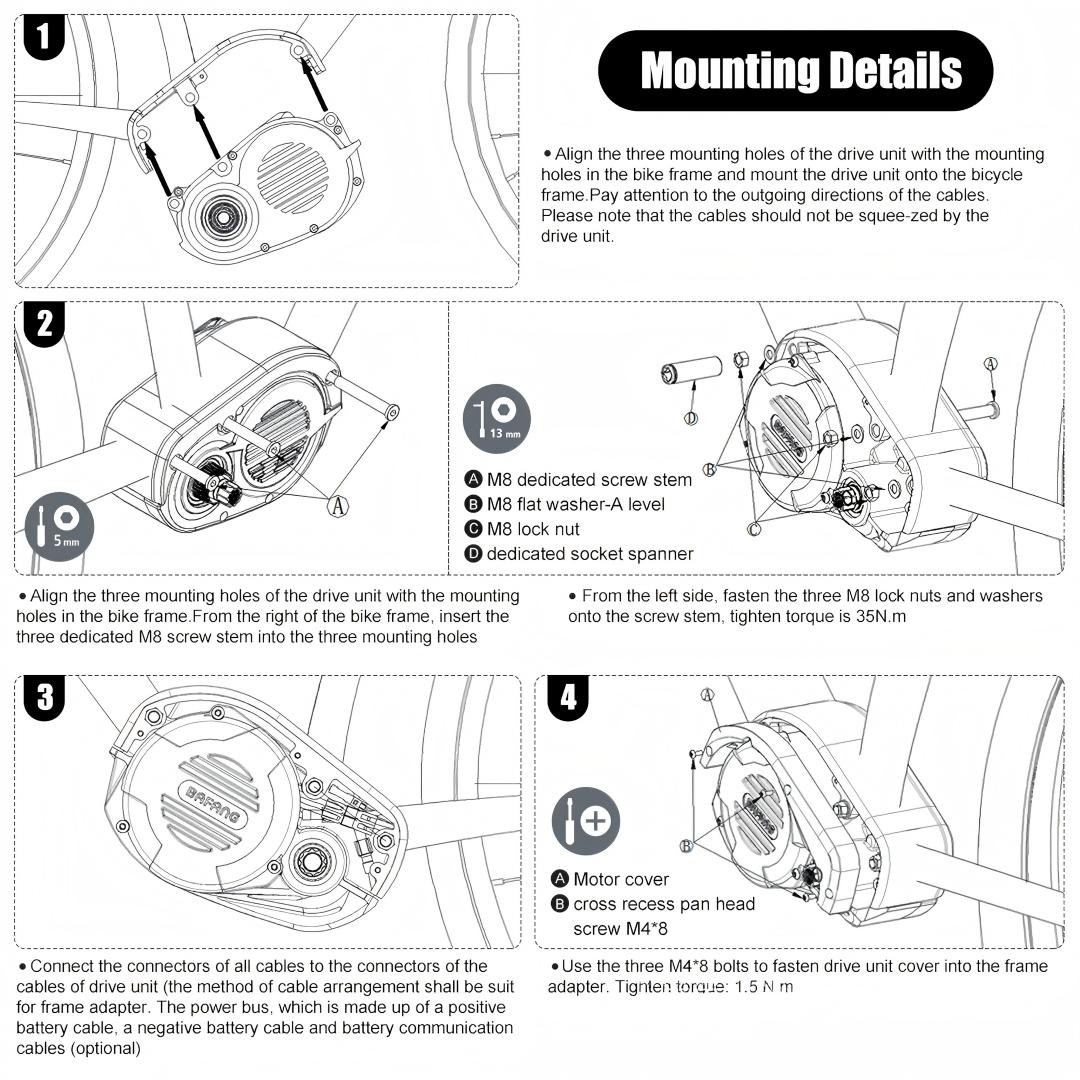

• The mounting torque must follow the manual: 35N.m for M8 lock nuts, 1.5N.m for motor cover screws.
• Avoid squeezing cables during installation to prevent signal failure.
• Minor color difference may exist due to screen and lighting.
• Mechanical measurement tolerance is allowed.
• Only items listed in Package Includes are covered.

Ideal for heavy-duty mountain e-bike builds, cargo electric bike retrofit, bicycle workshops and wholesale distributors. Build your powerful all-terrain ebike with Bafang M620 G510 mid drive kit.
