Bafang UART color LCD display meter, IP66 rating with M5 waterproof connector. Plug & play UART dashboard for BBS01 BBS02B BBSHD G320 G340 M300 M400 M620 mid motors, supports speed limit, wheel setup & error code reading.

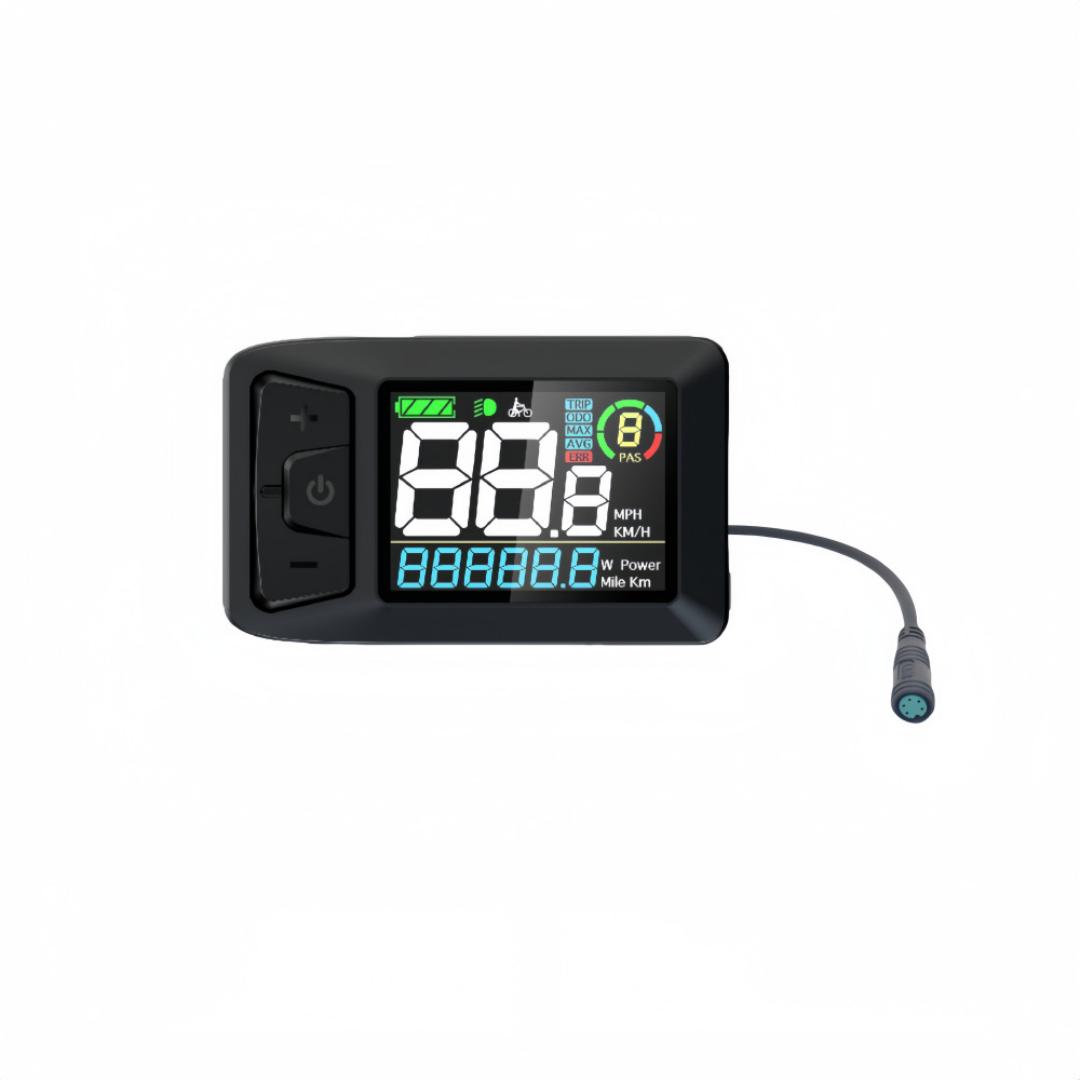

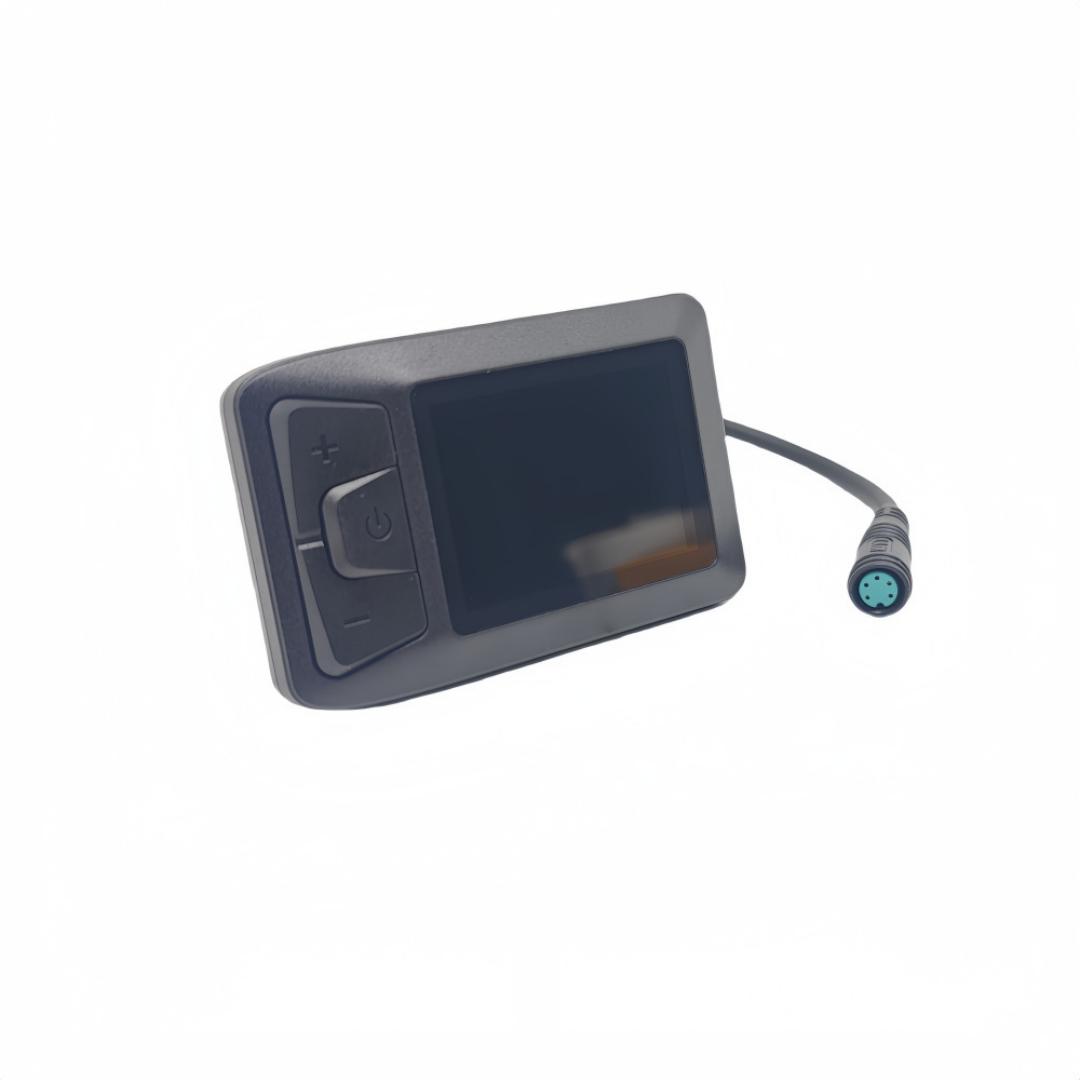

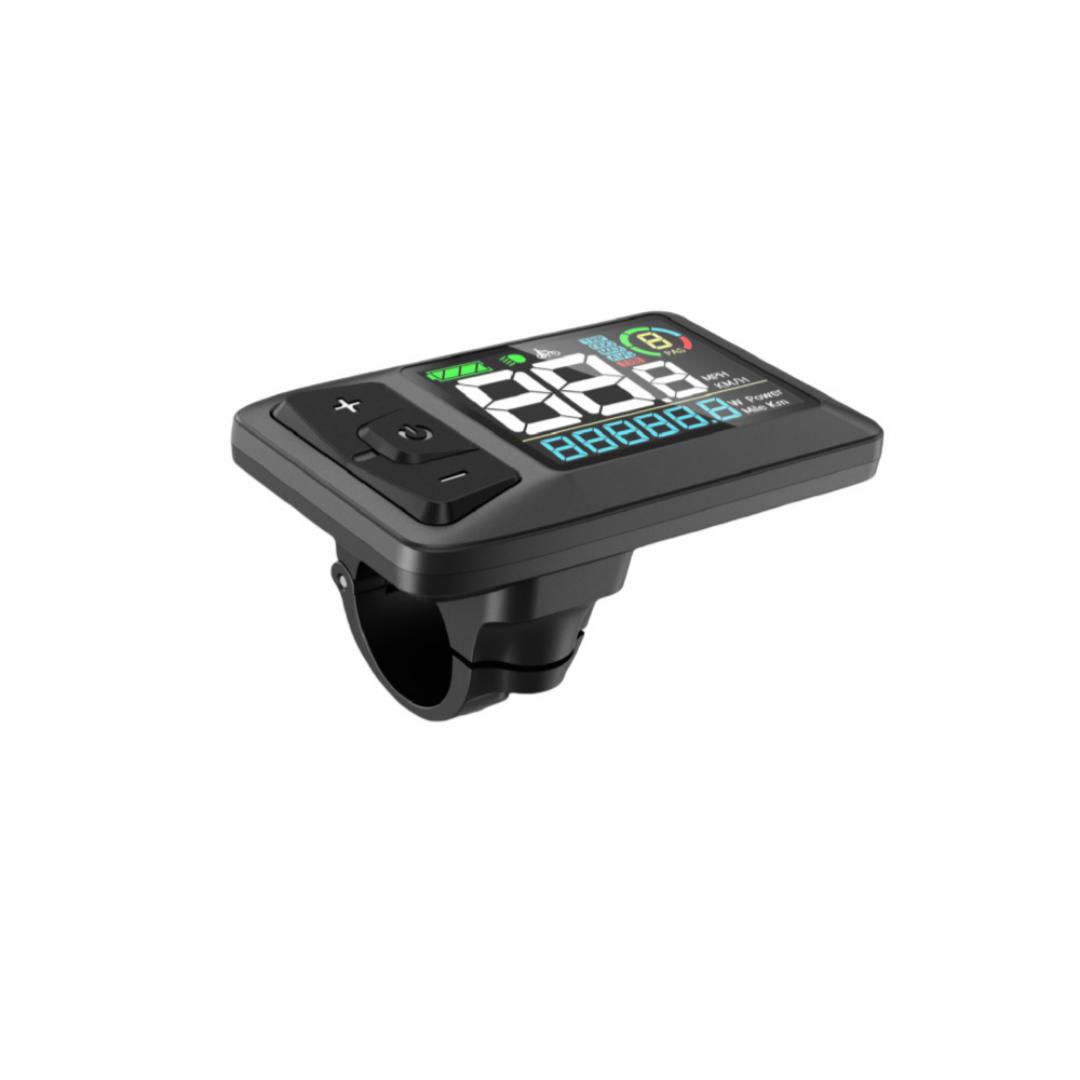

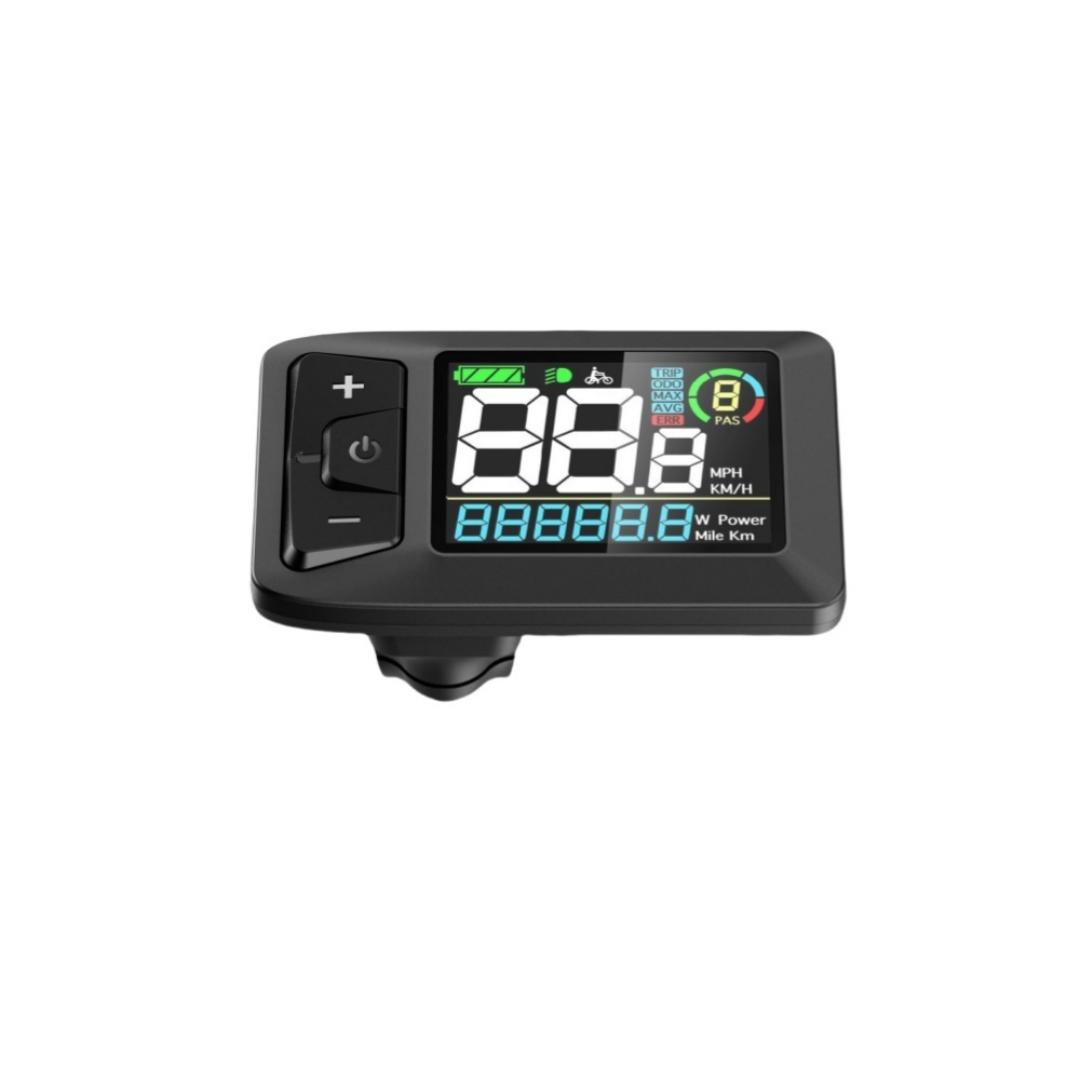

Bafang UART Color LCD Display Meter
This UART protocol color LCD dashboard is a dedicated replacement control panel for Bafang mid-drive ebike motors. It features a vivid color screen, M5 waterproof connector and IP66 dust & water resistance. It can show comprehensive riding data and support rich parameter configuration for ebike system tuning.
✅ Bafang BBS01 / BBS02B / BBSHD Mid-Drive Motor
✅ Bafang G320 / G340 Mid-Drive Motor
✅ Bafang M300 / M400 / M620 Mid-Drive Motor
Only works with UART protocol. Not compatible with CAN protocol Bafang motors.
| Parameter | Value |
|---|---|
| Product Name | Bafang UART Color K01 LCD Display Meter |
| Communication Protocol | UART |
| Material | ABS Plastic |
| Screen | Color LCD |
| Waterproof Grade | IP66 |

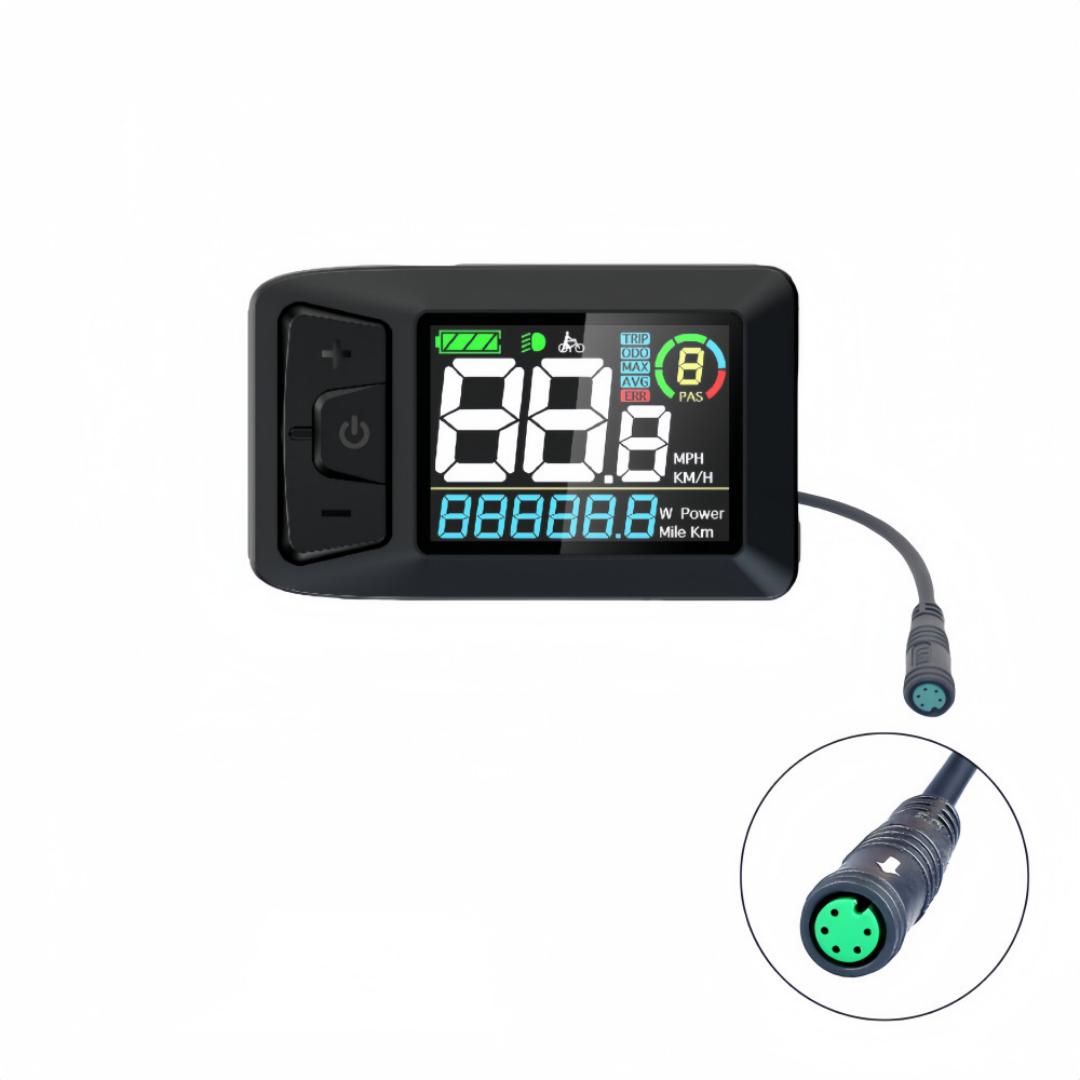

| Connector | M5 Waterproof Connector |
| Mount Handlebar Diameter | 22.2mm / 25.4mm |

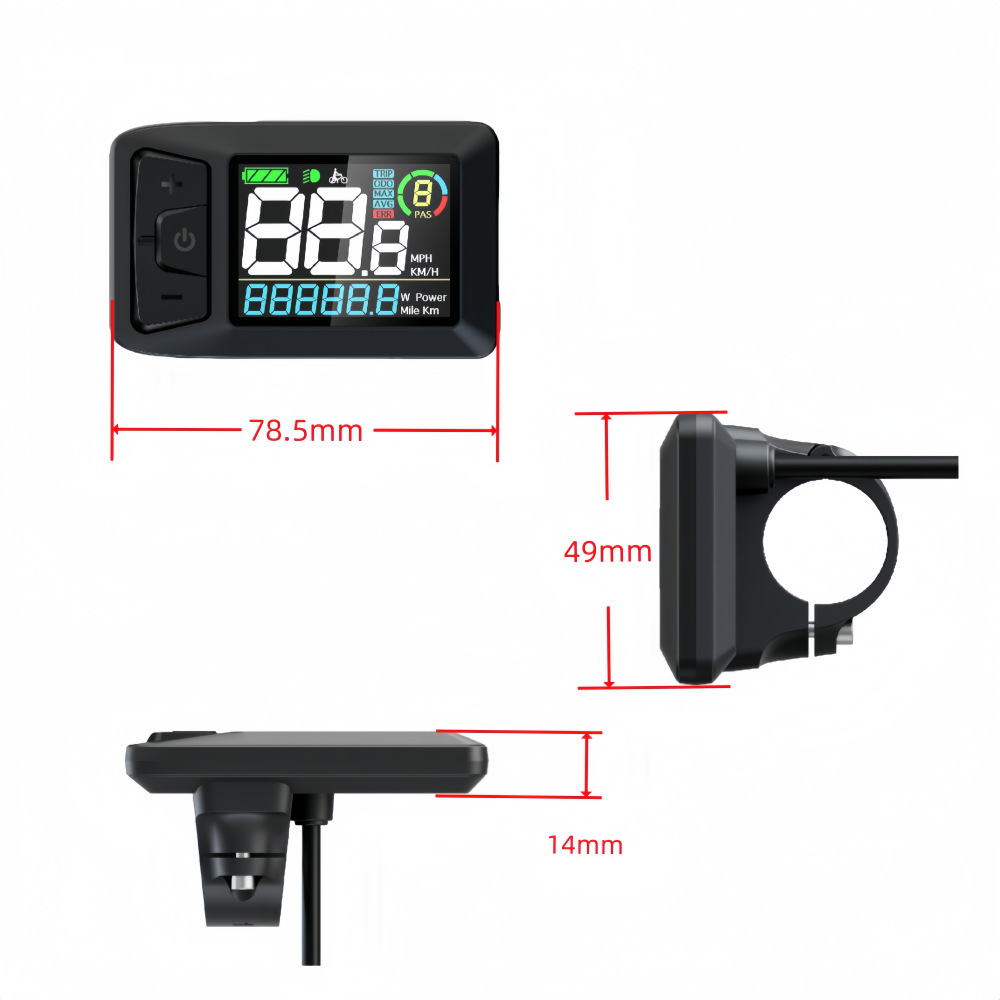

| Product Size | 78.5 × 49 ×14mm |
| Operating Temperature | -20℃ ~ +70℃ |
1 × Bafang UART Color LCD Display Meter (with built-in bracket & M5 cable)
✅ UART Plug & Play: Direct connection for Bafang UART mid motors, simple installation without complicated wiring.
✅ IP66 Waterproof & Dustproof: M5 waterproof connector protects internal electronics against rain and dust for all-weather outdoor riding.

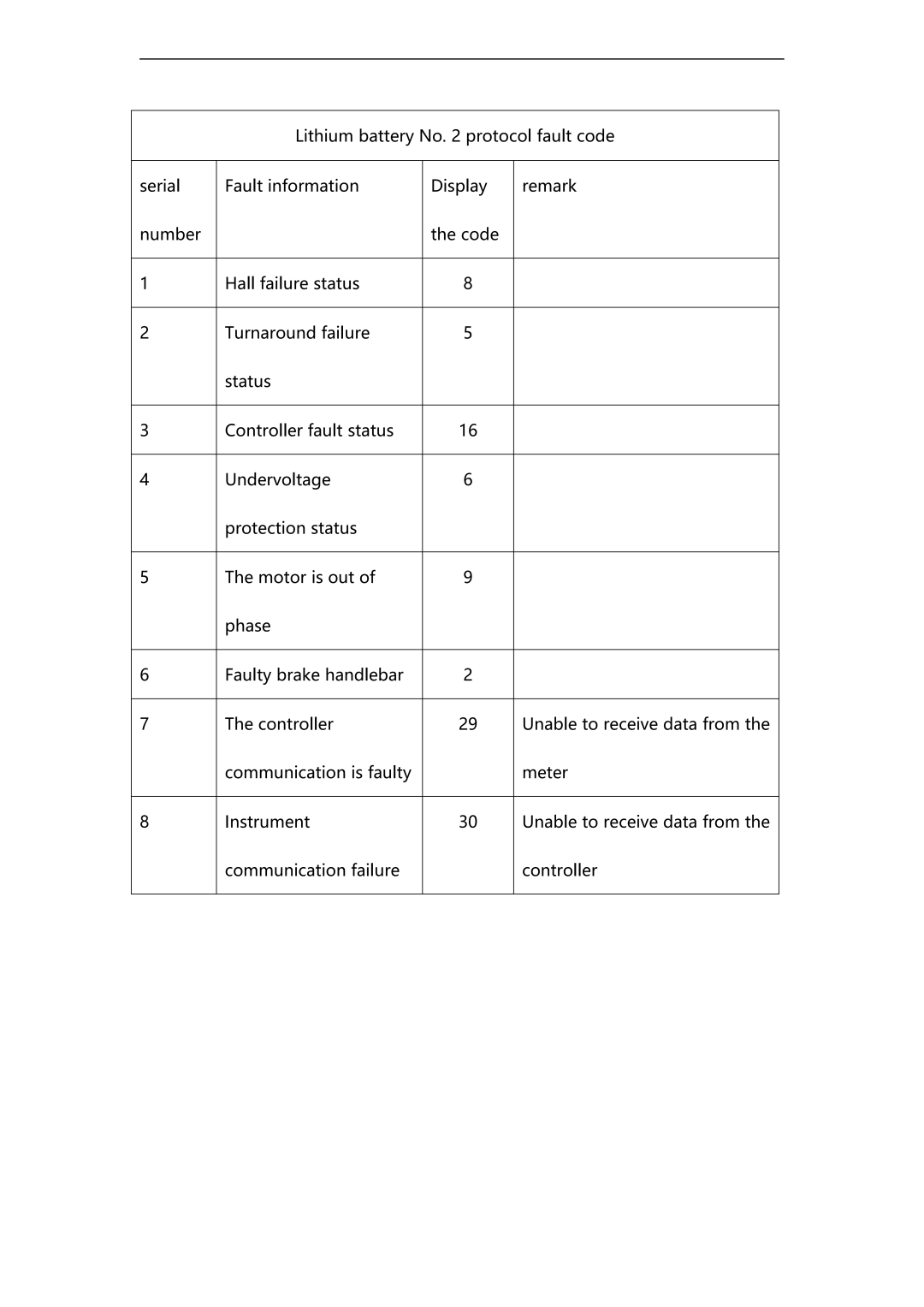

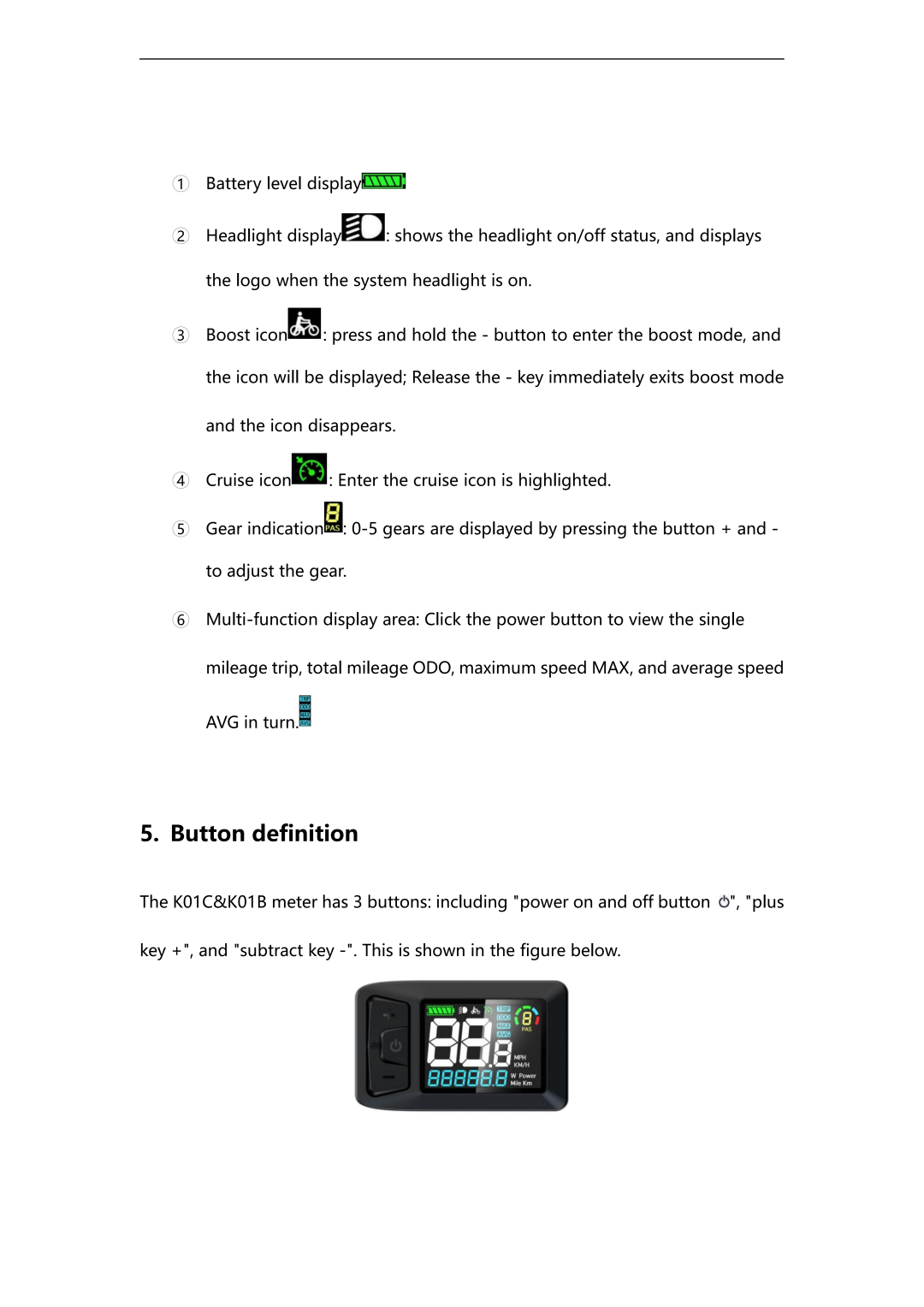

✅ Multi-Function Data Display: Shows current speed, average speed, trip distance, total mileage, power, battery level, PAS assist level and error fault codes.

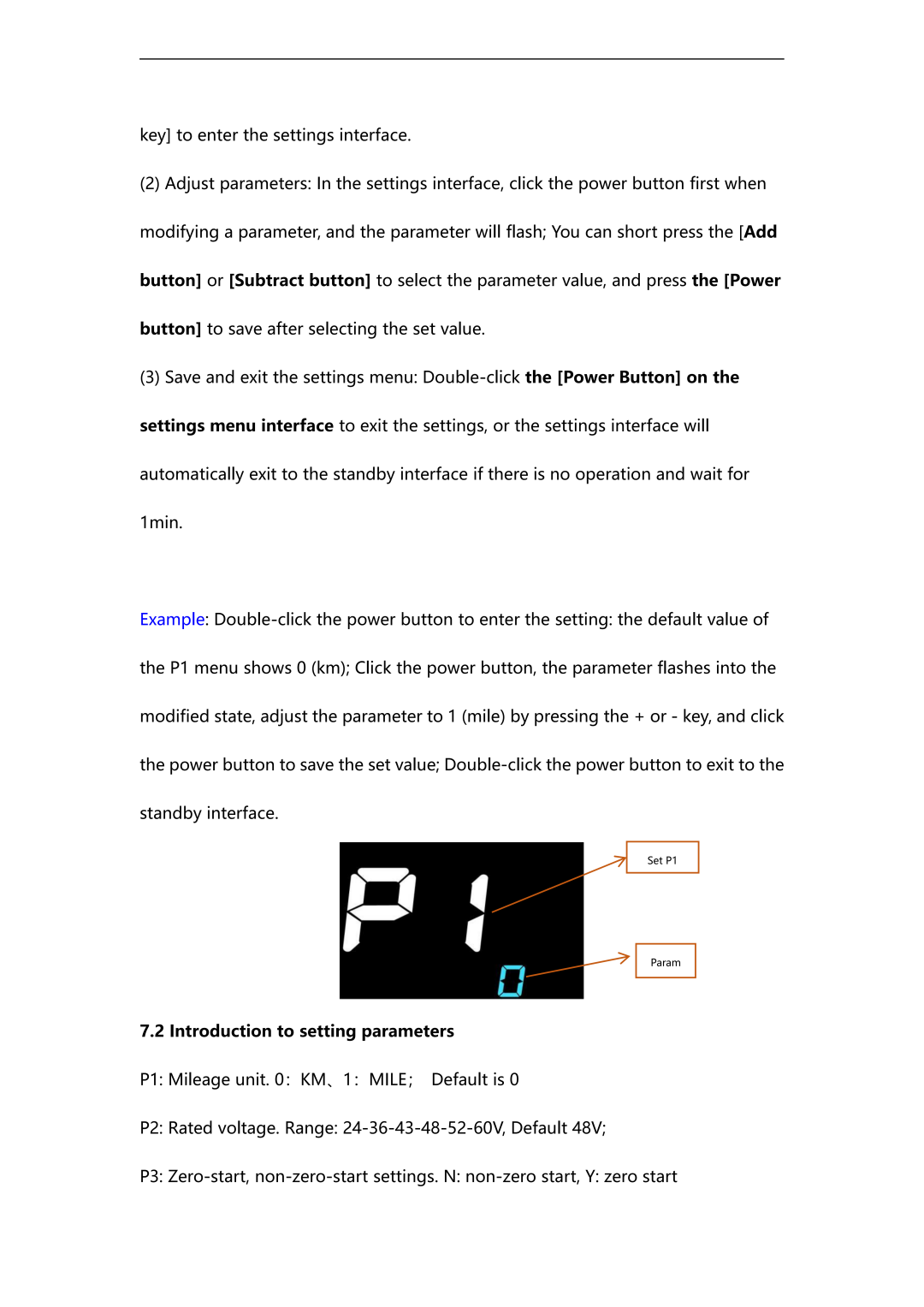

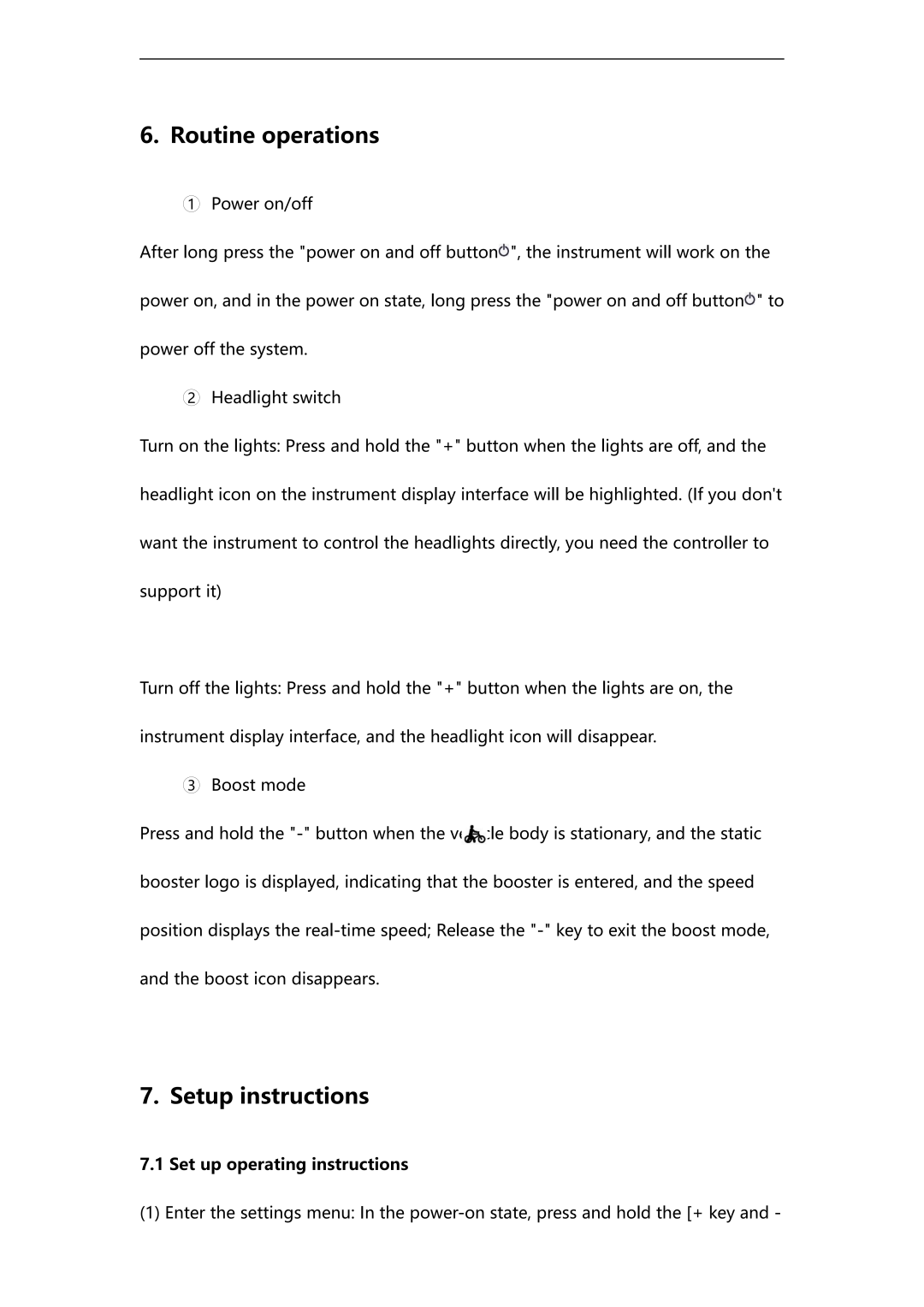

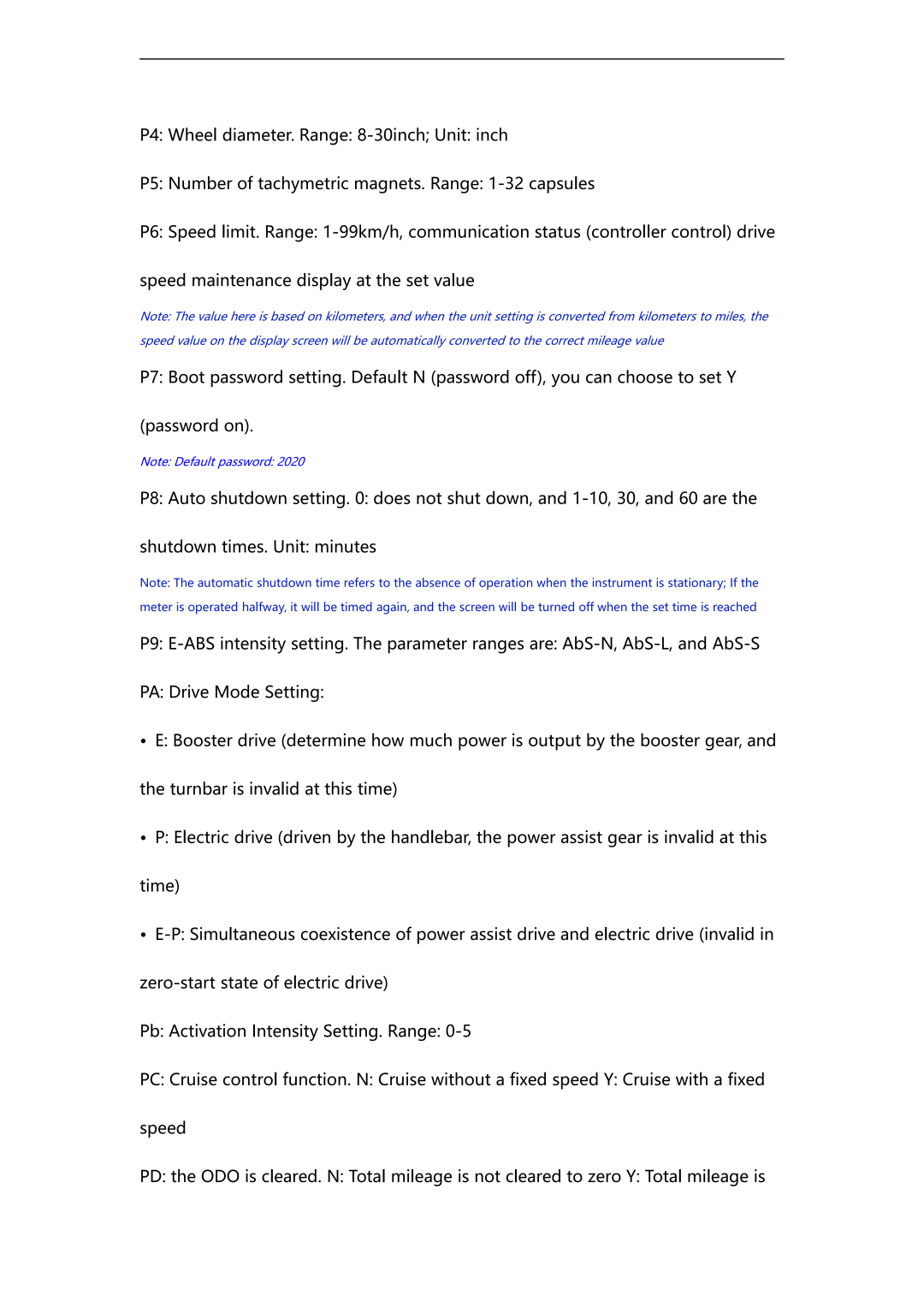

✅ Rich Parameter Settings: Support unit switching, speed limit adjustment, wheel diameter setting, auto power-off timer, trip data reset.
✅ Dual Handlebar Mount Size: Fits 22.2mm and 25.4mm bicycle handlebars, widely compatible with most ebike handlebars.
✅ Wide Temperature Working Range: Stable performance from -20℃ to +70℃, suitable for cold and hot riding environments.
Brand: After-market compatible for Bafang
Product Name: Bafang UART Color LCD Display Meter
Protocol: UART
Material: ABS Screen
Type: K01 Color LCD
Waterproof: IP66
Connector: M5 waterproof connector
Mounting: Fits 22.2mm /25.4mm handlebar
Dimension:78.5 ×49 ×14mm
Operating Temp: -20℃ ~ +70℃
Compatible Motors: Bafang BBS01, BBS02B, BBSHD, G320, G340, M300, M400, M620 mid-drive motors
Color: Black Package Content:1 × UART Color LCD Display Meter
❗This display only supports UART protocol. It can’t work with CAN-version Bafang mid motors. Confirm your motor communication protocol before ordering to avoid mismatch. Suitable for handlebar diameter 22.2mm /25.4mm only. Minor color deviation may exist due to lighting and screen display differences. Allow measurement tolerance ±1~2mm. Only display unit with cable is included; motor, throttle and other ebike parts shown in demo pictures are not included. Ideal spare stock for ebike repair shops, DIY builders and wholesale distributors.
