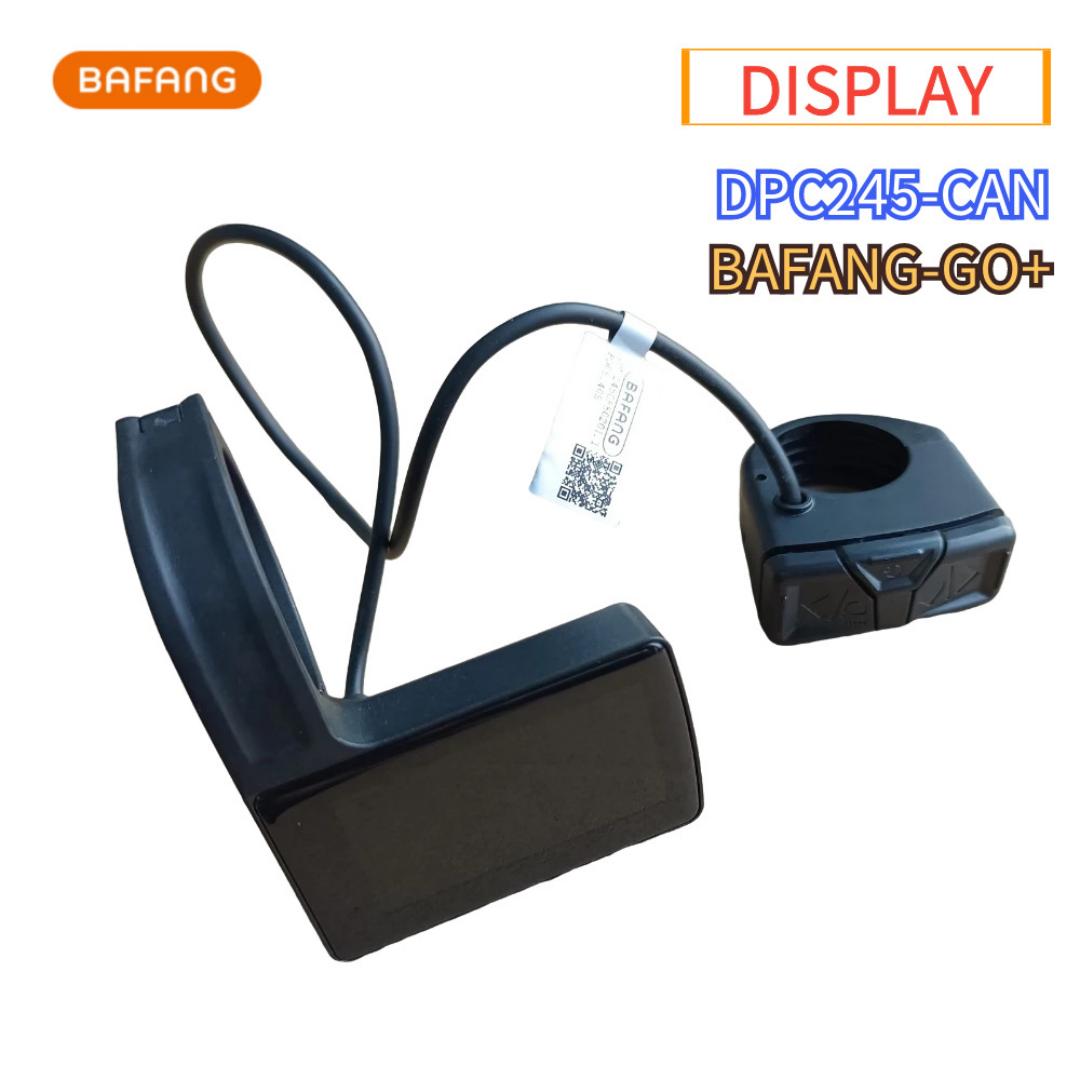

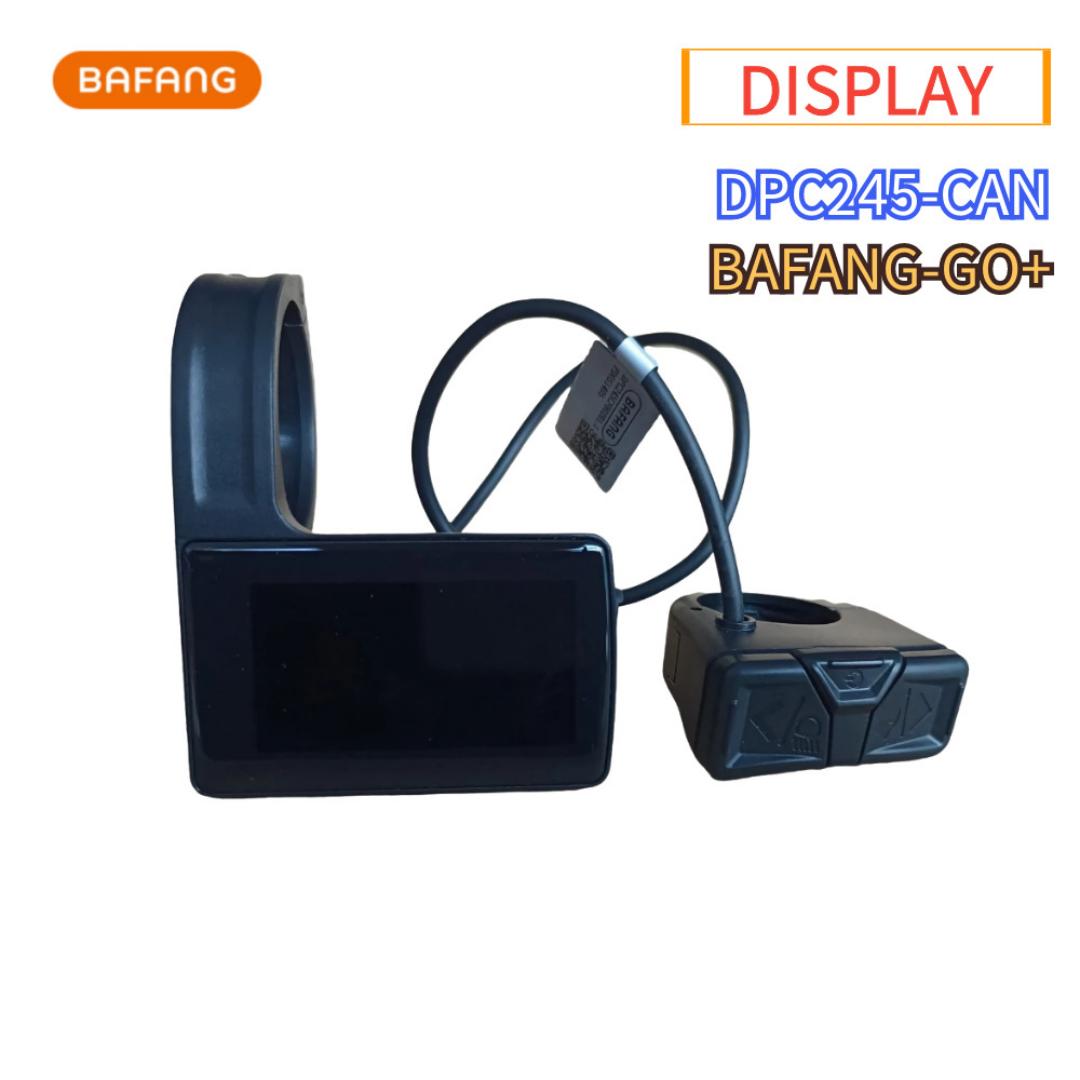

DPC245‑CAN V3.0 Color TFT LCD Ebike Display, Triangular Green CAN Plug Speedometer for Bafang Mid‑Drive Motor M400 M420 M500 M510 M560 M600 M800 M820, USB‑C Charging Port

DPC245‑CAN V3.0 Color TFT‑LCD Display for Bafang CAN‑Bus Mid‑Drive Motors

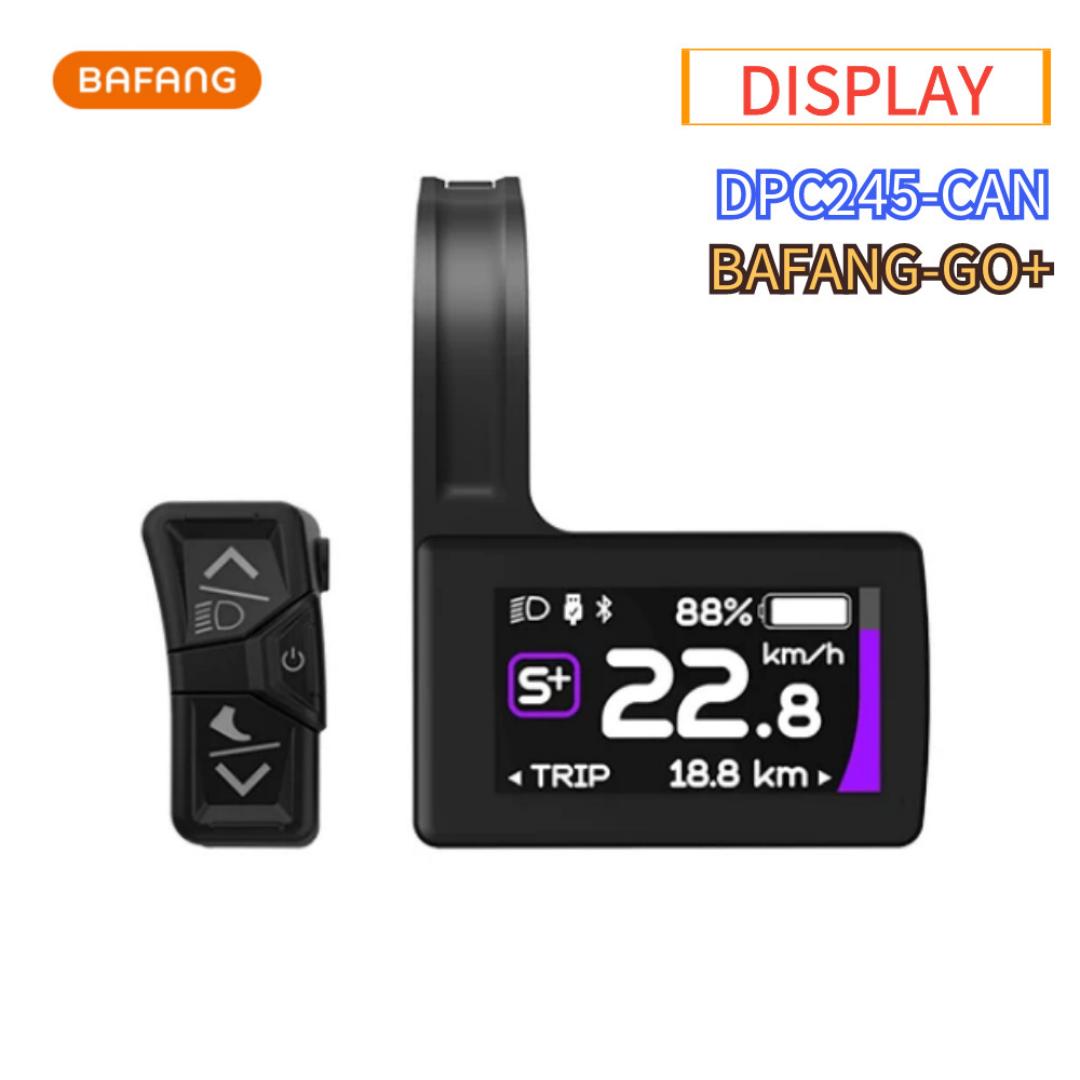

This DPC245‑CAN V3.0 is a professional replacement dashboard for Bafang CAN‑protocol mid‑drive e‑bike motors. Equipped with high‑contrast TFT color LCD screen, durable physical operation buttons and USB‑C interface. It delivers clear riding metrics for e‑MTB riders. Please note that Bluetooth & Bafang GO+ APP sync function is only supported by C245 model, not for this DPC245‑CAN V3.0 unit.

Compatibility

✅ Bafang M400 Mid‑Drive E‑bike Motor

✅ Bafang M420 Mid‑Drive E‑bike Motor

✅ Bafang M500 Mid‑Drive E‑bike Motor

✅ Bafang M510 Mid‑Drive E‑bike Motor

✅ Bafang M560 Mid‑Drive E‑bike Motor

✅ Bafang M600 Mid‑Drive E‑bike Motor

✅ Bafang M800 Mid‑Drive E‑bike Motor

✅ Bafang M820 Mid‑Drive E‑bike Motor

Works with partial CAN‑protocol hub motor controllers; Features triangular green CAN plug only, NOT compatible with UART or round‑plug motor systems.

Precise Dimensions & Core Parameters

Package Includes

1 × DPC245‑CAN V3.0 Color TFT‑LCD Display Unit

Key Features

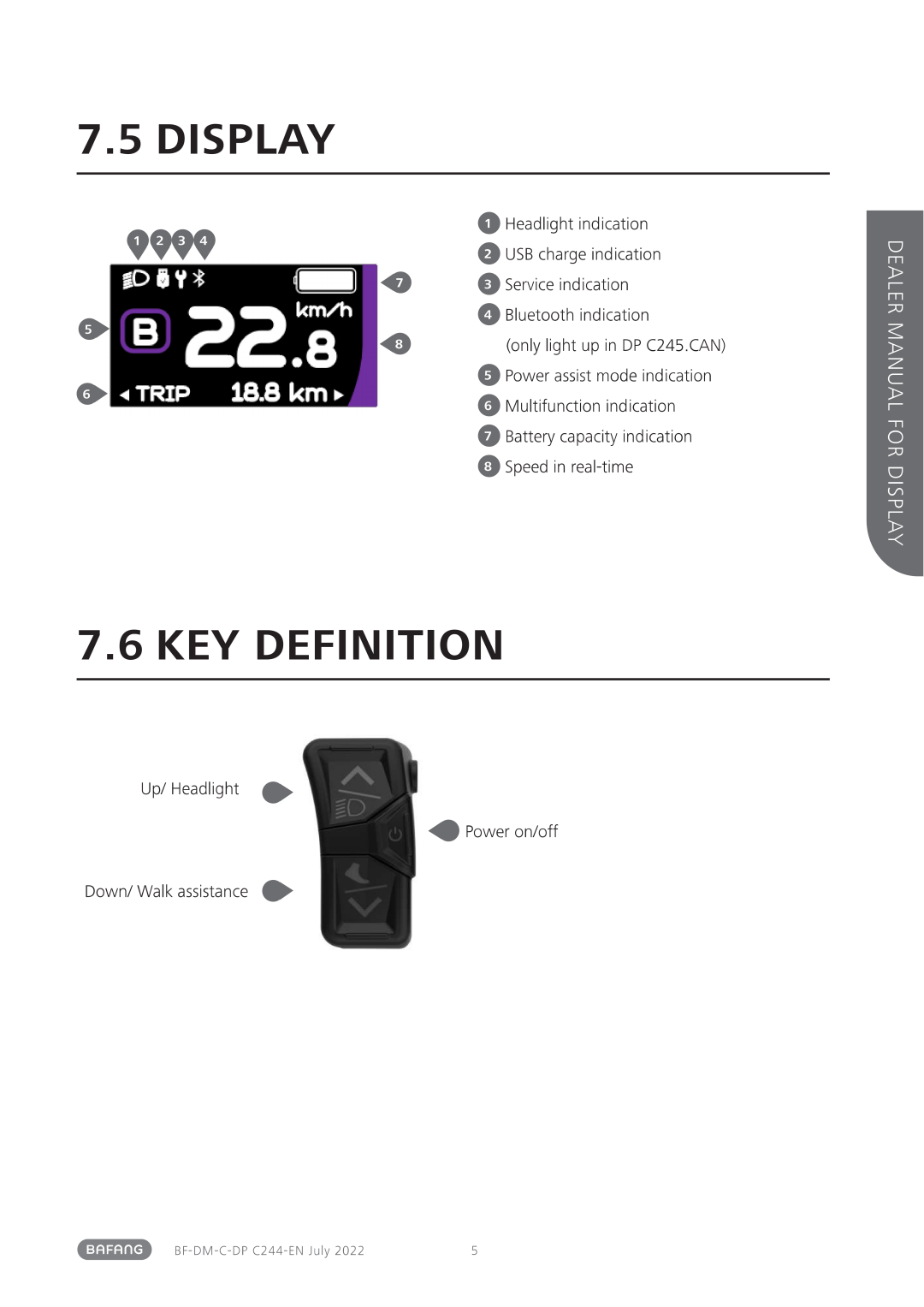

✅ High‑Contrast Sunlight‑Readable TFT‑LCD Screen: Vivid color display keeps speed, mileage, battery and assist‑level data legible even under direct strong sunlight.

✅ Sturdy Physical Operation Buttons: Rugged tactile buttons, easy to press even with gloves during off‑road e‑MTB riding, stable long‑term usage.

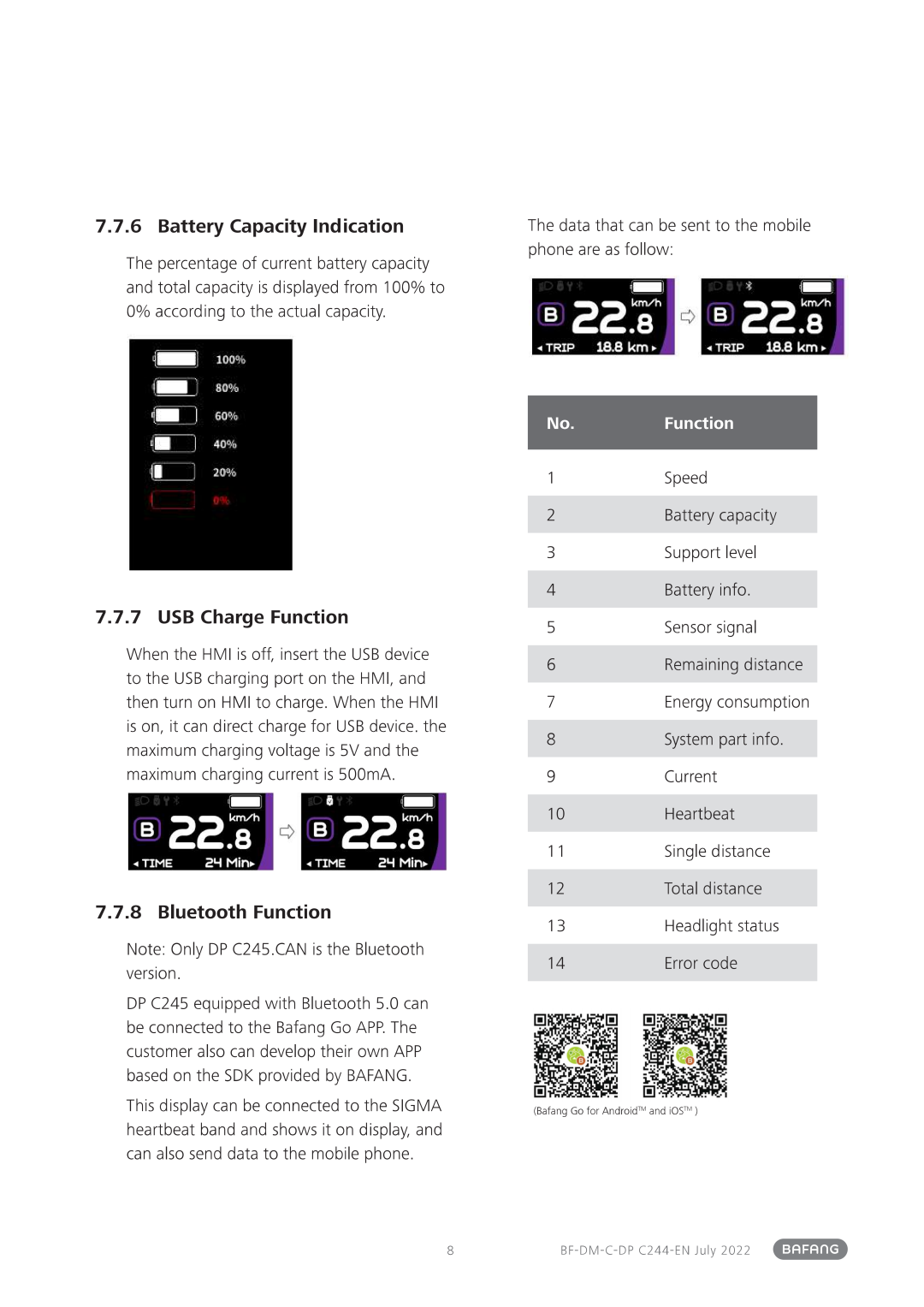

✅ USB‑C Charging Port: Built‑in USB‑C port supplies 5V 500mA power output, convenient for charging your mobile device on the go during long cycling trips.

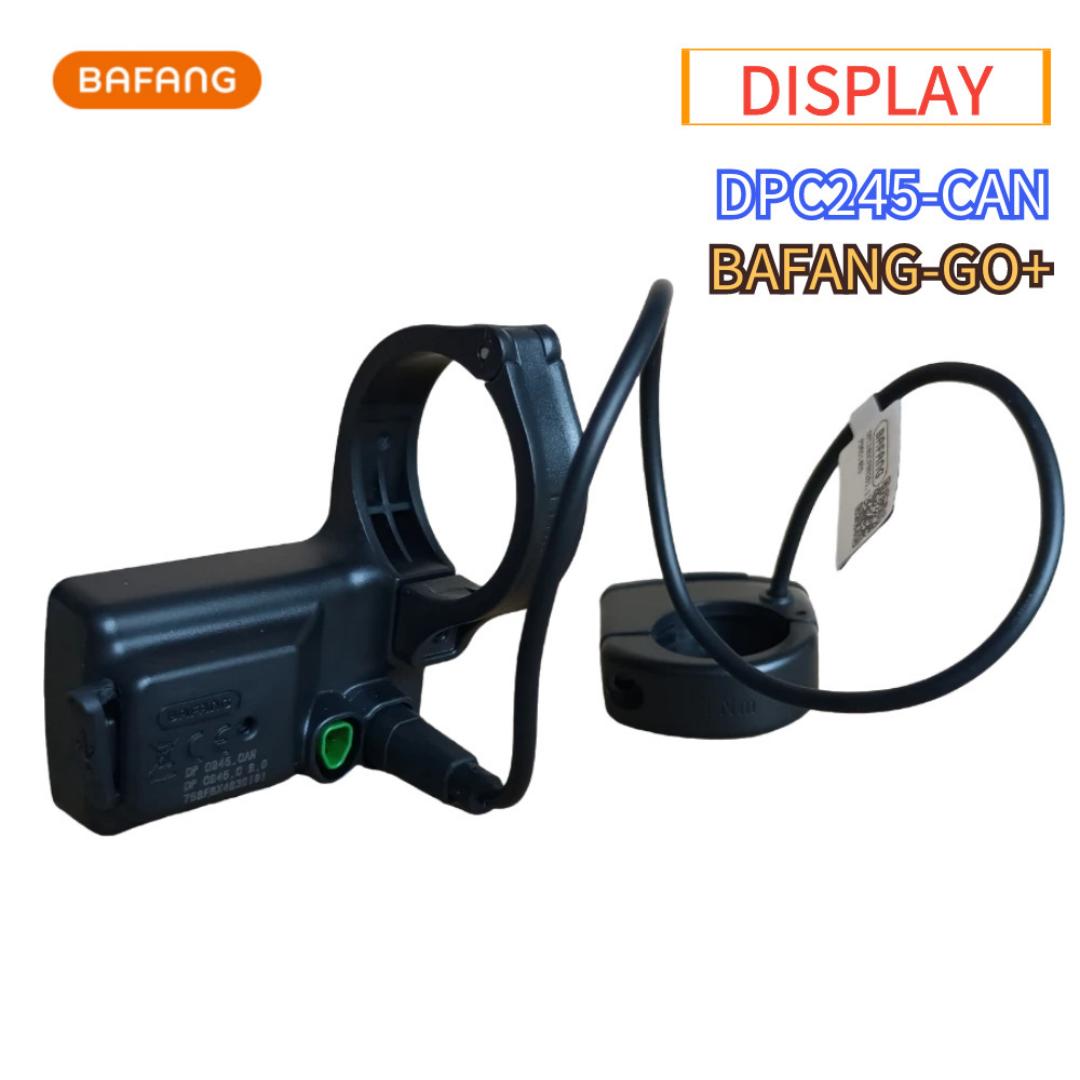

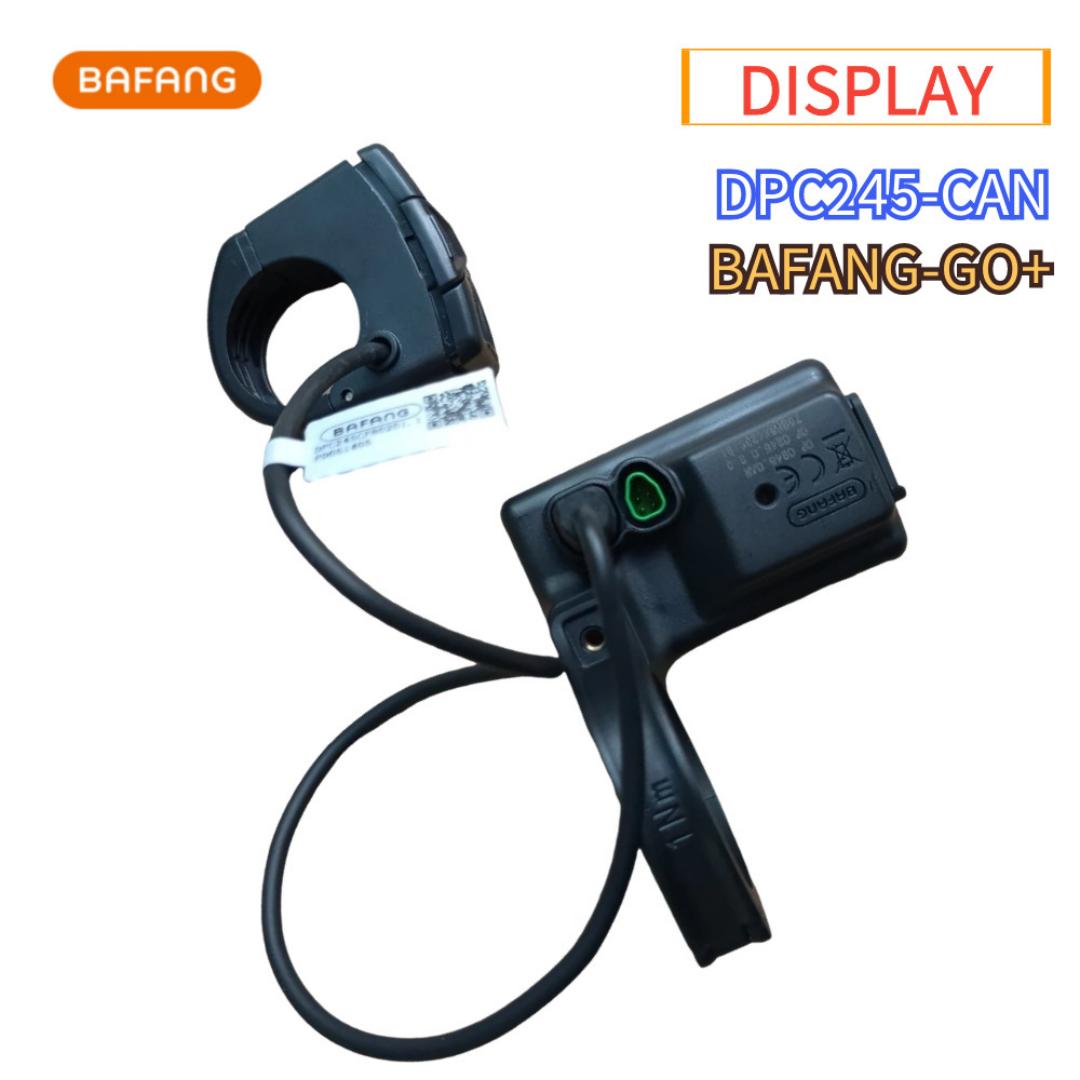

✅ Standard Triangular Green CAN Plug: Original‑spec triangular green connector, direct plug‑and‑play for matching Bafang CAN‑bus mid motors and partial CAN hub motor controllers.

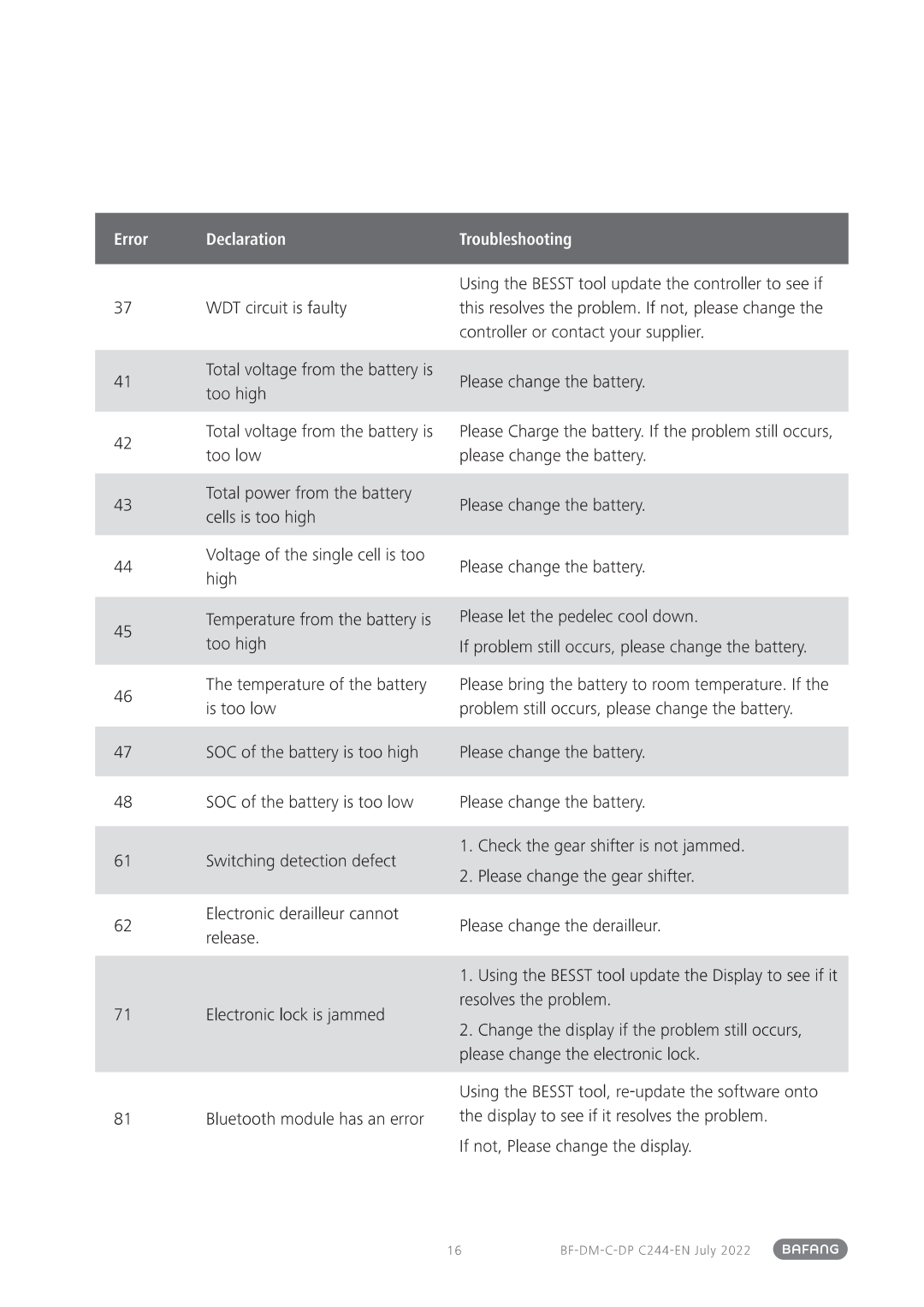

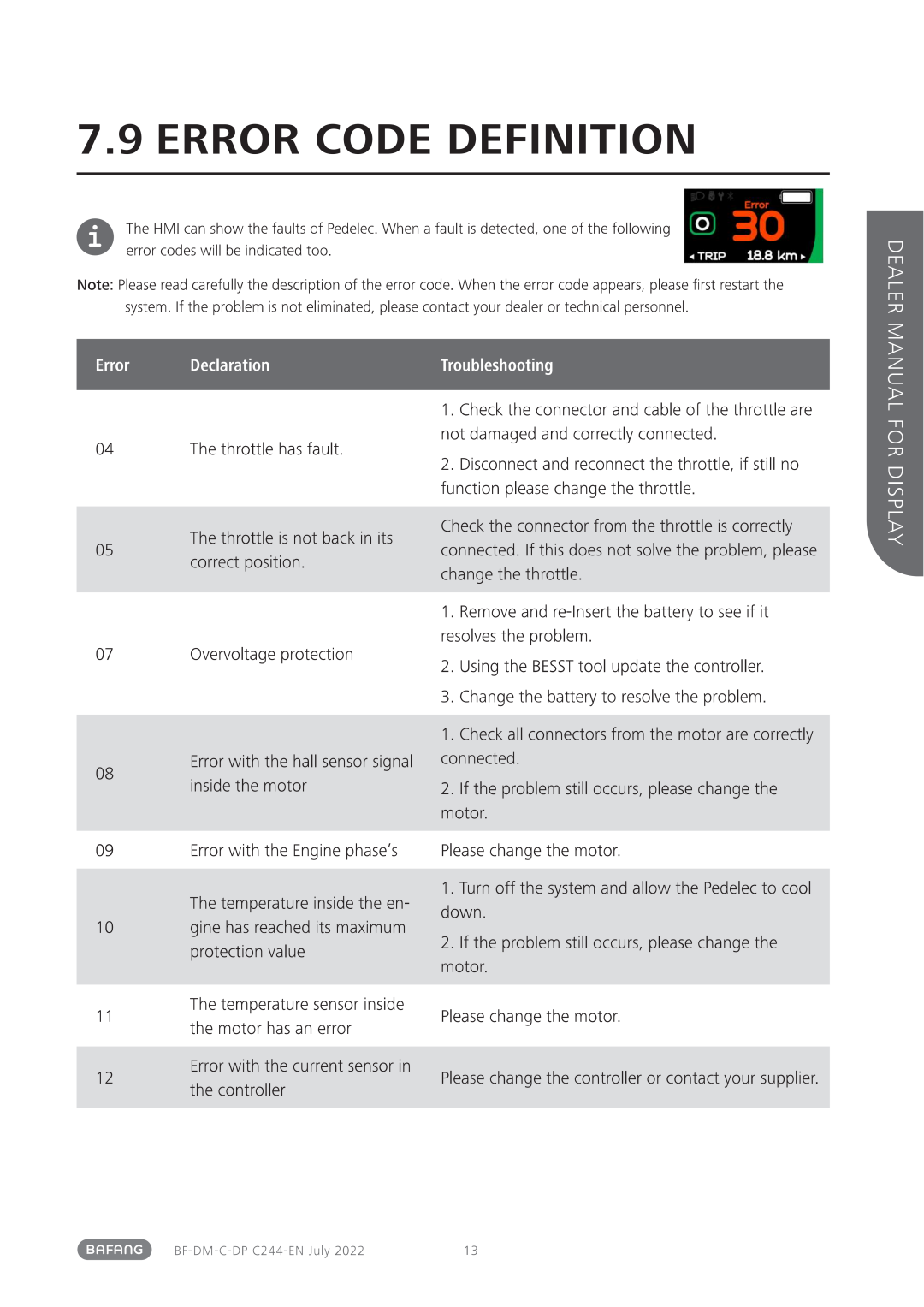

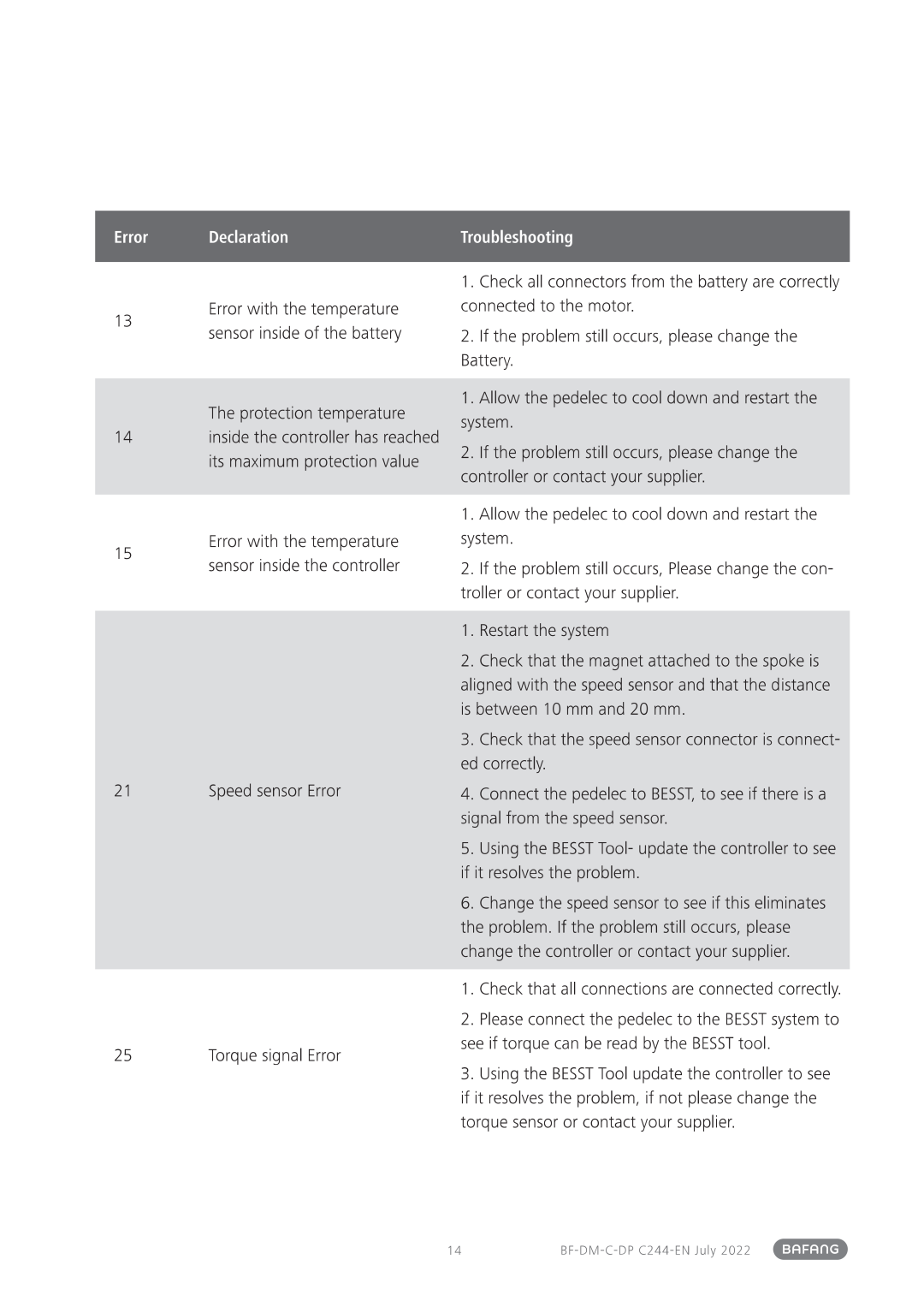

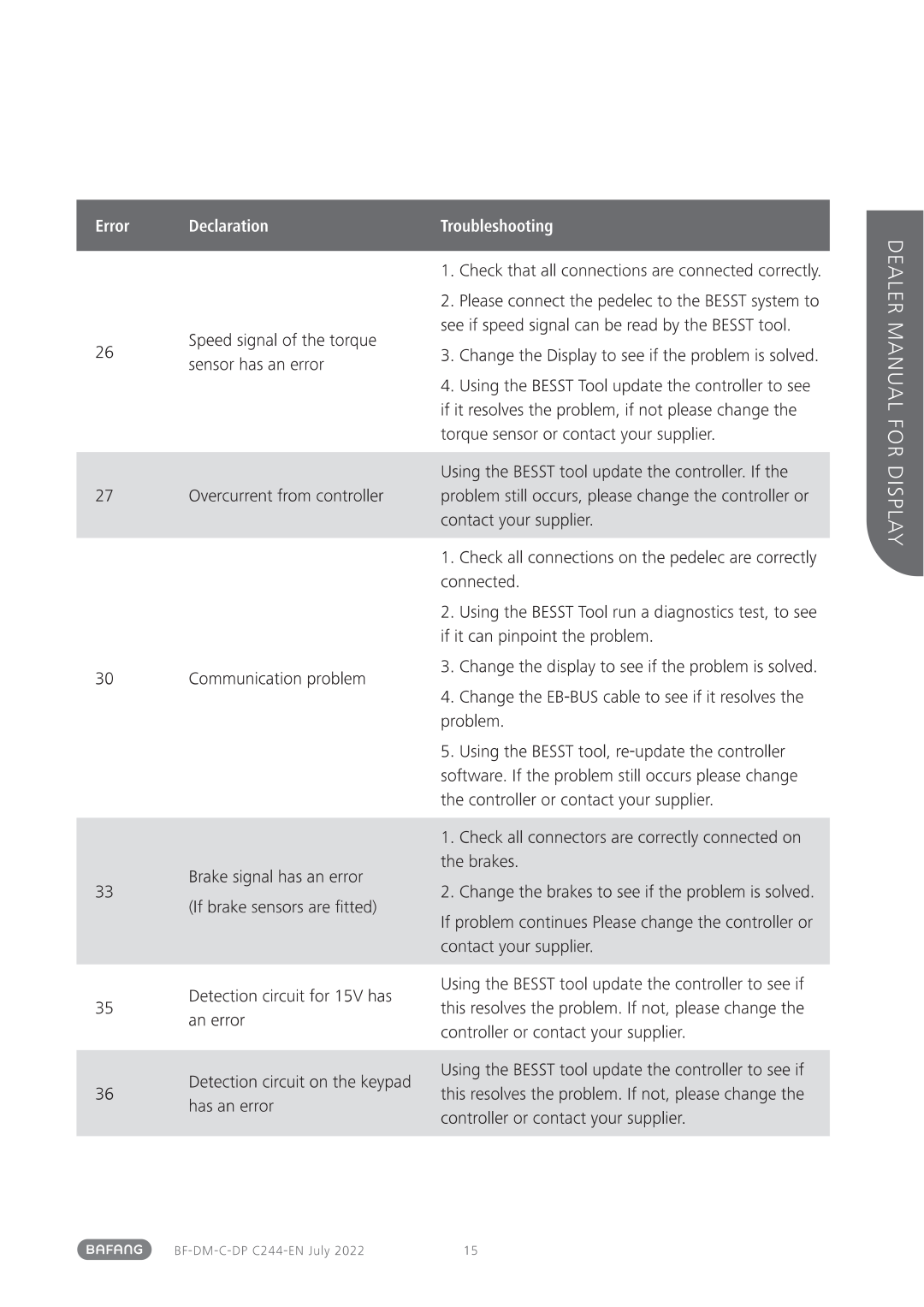

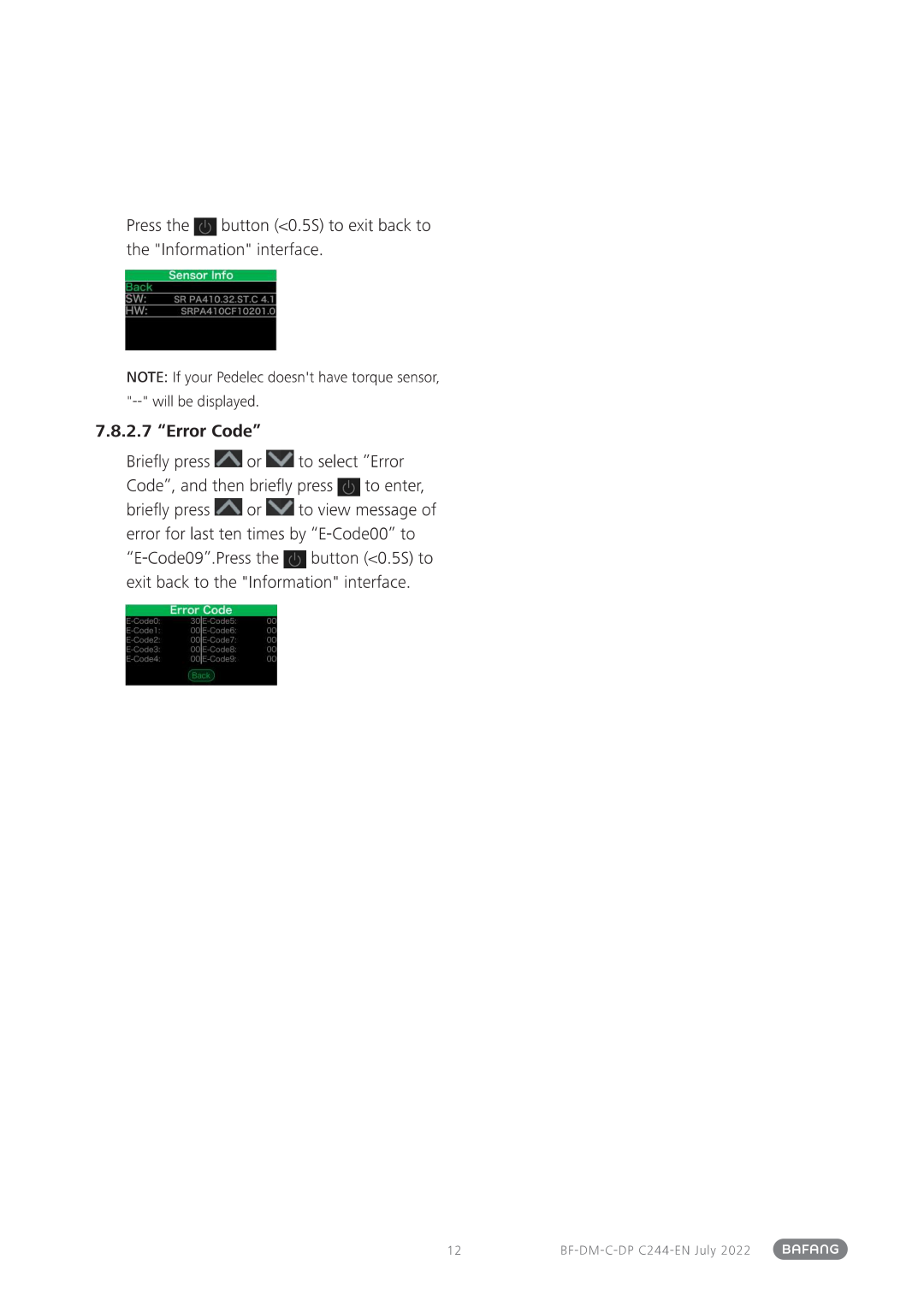

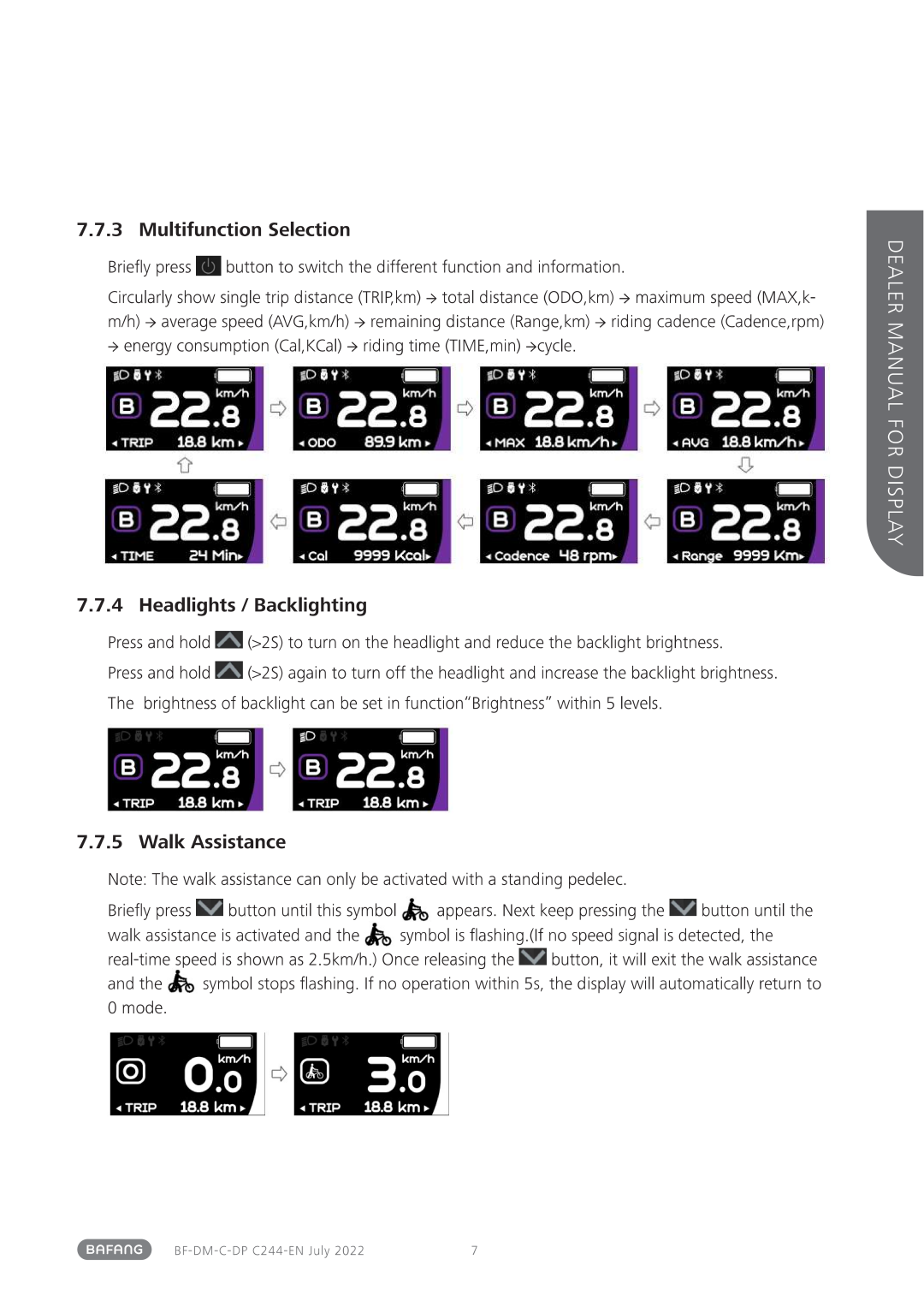

✅ Accurate Real‑Time Riding Monitoring: Tracks speed, trip mileage, total ODO, battery remaining, assist mode and system error codes, you can quickly check your ebike system status.

Important Reminder: Bluetooth connection and Bafang GO+ mobile app data‑sync feature are available on C245 model only, this DPC245‑CAN V3.0 display does NOT include Bluetooth module.

Specifications

Brand: After‑market compatible for Bafang

Product Name: DPC245‑CAN V3.0 E‑MTB Color TFT‑LCD Display

Model: DPC245‑CAN V3.0

Screen: High‑Contrast Color TFT‑LCD

Communication: CAN‑Bus Protocol

Connector: Triangular Green Plug Port: USB‑C (5V 500mA charging output)

Physical Buttons: Yes

Bluetooth: ❌ Not supported (C245 model required for Bluetooth)

Compatible Motors: Bafang M400, M420, M500, M510, M560, M600, M800, M820 CAN‑bus mid‑drive motors & partial CAN hub controllers

Color: As shown in product picture

Package Content: 1 × DPC245‑CAN V3.0 Display Screen

Important Notes

Double‑check your motor uses CAN‑bus protocol with triangular green plug before ordering; it will NOT fit UART‑protocol or round‑connector Bafang motors.

Bluetooth & Bafang GO+ App sync function is exclusive for C245 model, DPC245‑CAN V3.0 does not come with Bluetooth capability.

Minor color deviation may exist due to shooting lighting and screen display differences.

Only DPC245‑CAN V3.0 display unit is included; other accessories shown in reference images are NOT contained in package.

Ideal replacement spare for ebike repair stores, eMTB DIY rebuilders and wholesale distributors. If you need further function details, please contact customer service.
