Tongsheng TSDZ2 Ebike Display Assembly, 5Pin 6Pin 8Pin VLCD5 Display Variants With / Without Control Button, Replacement Dashboard for TSDZ2 Mid‑Drive Motor Spare Part

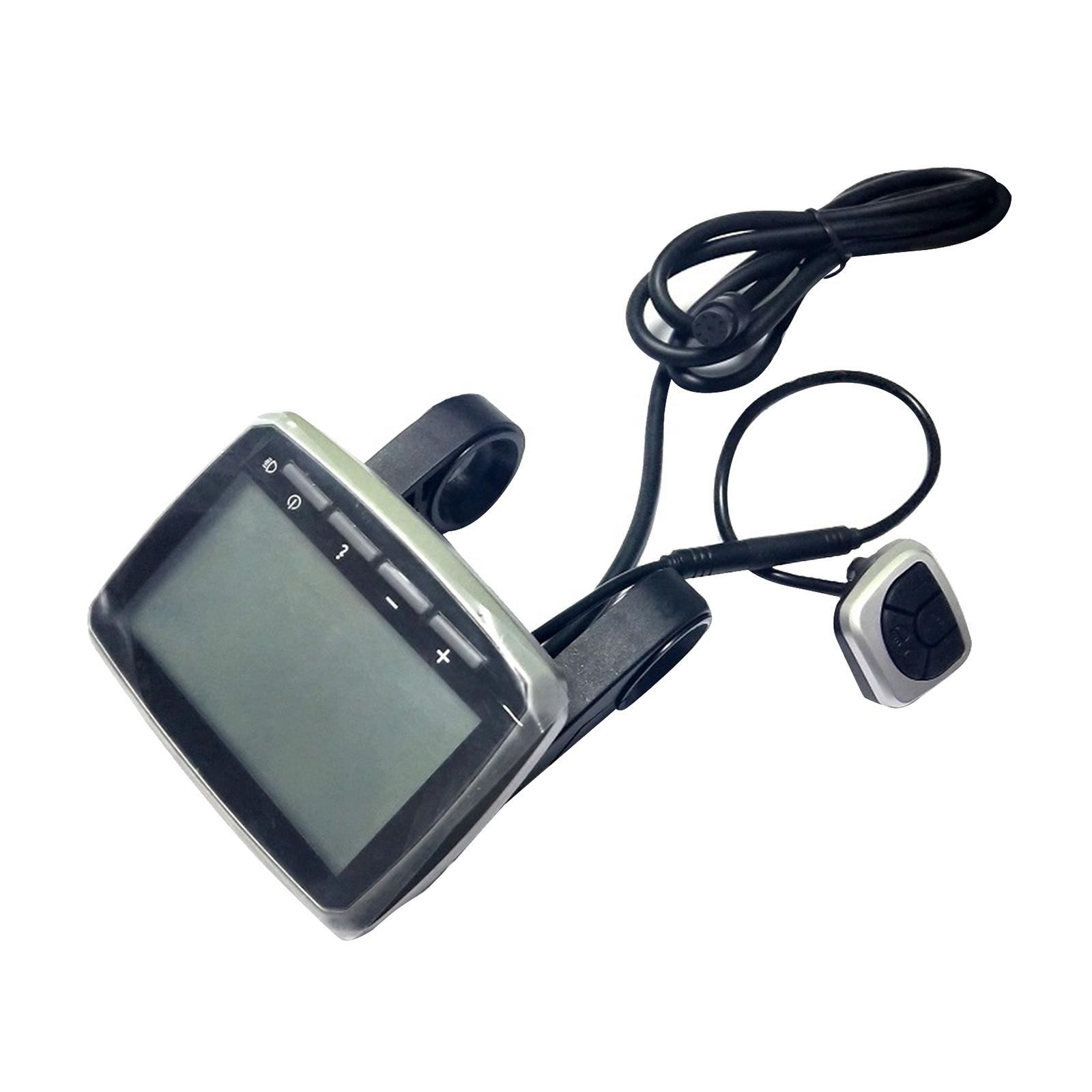

Tongsheng VLCD5 LCD Display for TSDZ2 Central Mid‑Drive E‑bike Motor

The VLCD5 LCD display is dedicated replacement dashboard for Tongsheng TSDZ2 and TSDZ2B mid‑drive motors. Two connector options available: 6‑Pin and 8‑Pin. The pin configuration determines whether throttle function is supported. Please double‑check your original display connector before ordering to avoid buying the wrong variant.

Compatibility

✅ Tongsheng TSDZ2 Central Mid‑Drive Motor

✅ 36V 250W / 36V 350W / 36V 500W / 48V 500W

Precise Parameters

Package Includes

1 × VLCD5 Display (selected 6Pin or 8Pin version as ordered)

Key Features

✅ Dedicated for TSDZ2 and TSDZ2B Mid-Motor: Perfectly compatible with TSDZ2 and TSDZ2B 36V/48V 250W‑500W mid‑drive motor systems for direct replacement.

✅ Two Connector Versions: ‑ 6Pin: For motors without throttle function ‑ 8Pin: For motors equipped with throttle function

✅ Stable Signal Transmission: Factory‑matched pin definition, secure plug connection to prevent intermittent signal failure during riding.

✅ Easy Replacement: Designed as aftermarket repair spare part for broken or faulty original VLCD5 display.

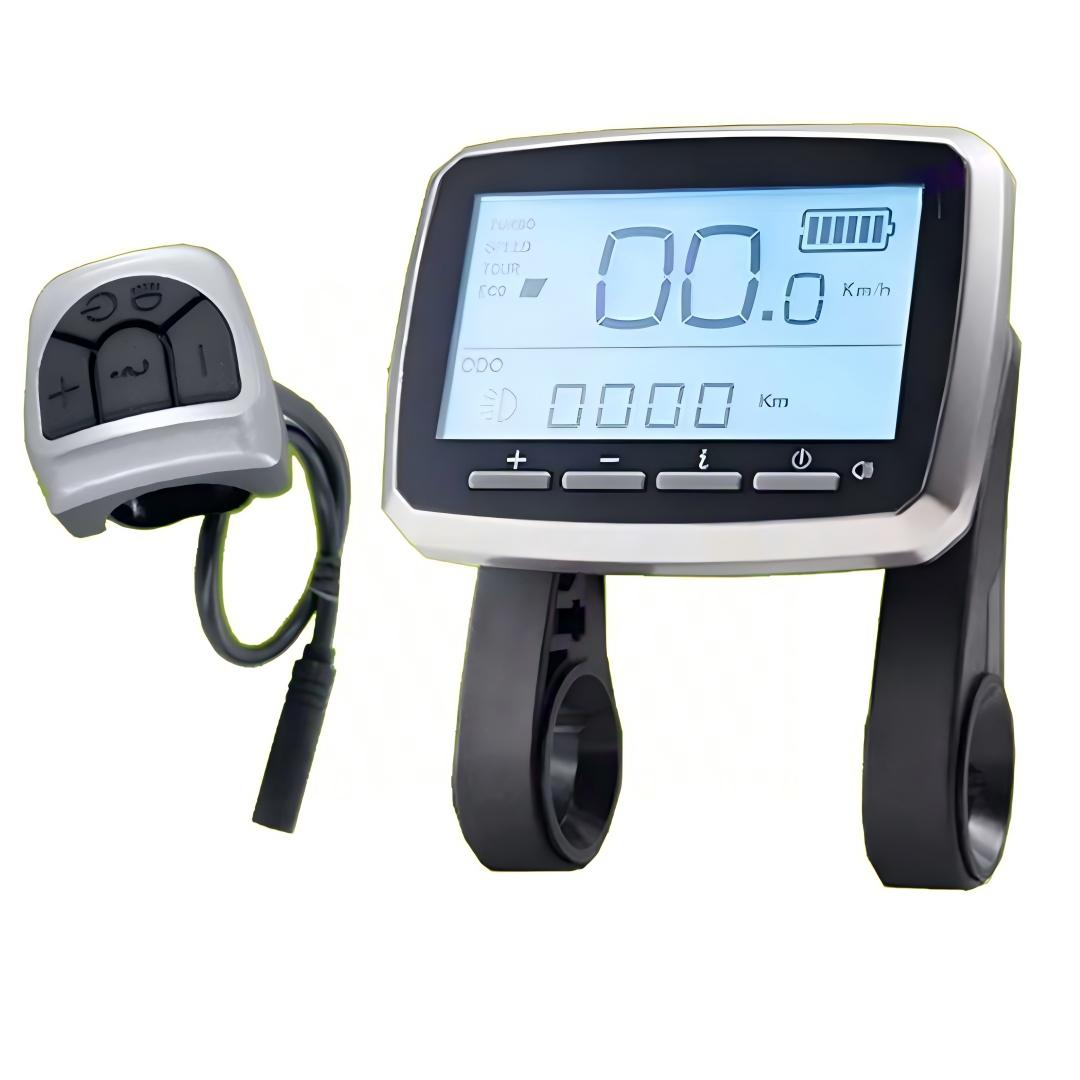

✅ Clear Riding Data Readout: Shows assist level, speed, battery status and other core ebike information.

Specifications

Brand: Tongsheng

Product Name: VLCD5 LCD Display

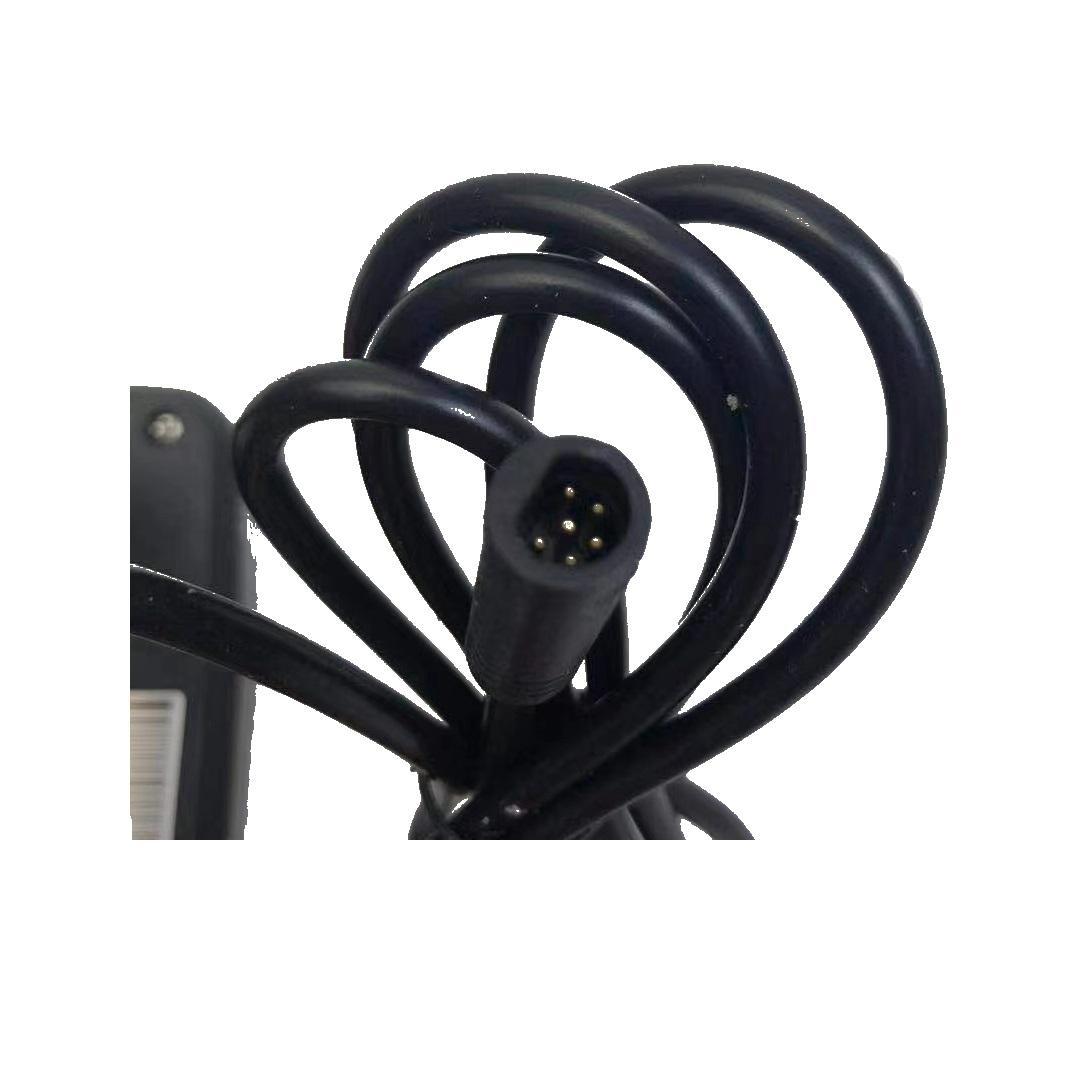

Connector: 6Pins / 8Pins (Select when ordering)

Function Difference: 6Pin = No throttle; 8Pin = With throttle

Compatible Motor: TSDZ2 and TSDZ2B Central Mid‑Drive Motor

Supported Voltage & Power: 36V 250W /36V 350W /36V 500W /48V 500W

Color: As shown in the picture

Package: 1 × VLCD5 Display

Important Notes

Critical Reminder: Please check whether your original LCD display is 6‑pin or 8‑pin before placing your order. Do not buy the wrong variant.

6PIN variant applies to motors without throttle function; 8PIN variant applies to motors with throttle function. Mismatched pin version will cause abnormal or non‑functional throttle.

Minor color differences may appear due to lighting conditions and screen display variations.

Allow measurement tolerance of ±1‑3cm.

Only the VLCD5 display is included; motor, throttle, battery and other accessories shown in reference images are not part of the package.

Professional ebike installation is recommended. Incorrect plug‑in may damage display or controller.

Perfect spare parts for e‑bike repair stores, DIY motor rebuilders and ebike wholesale distributors. Cost‑effective replacement to restore display functions for TSDZ2 mid‑drive ebikes.
